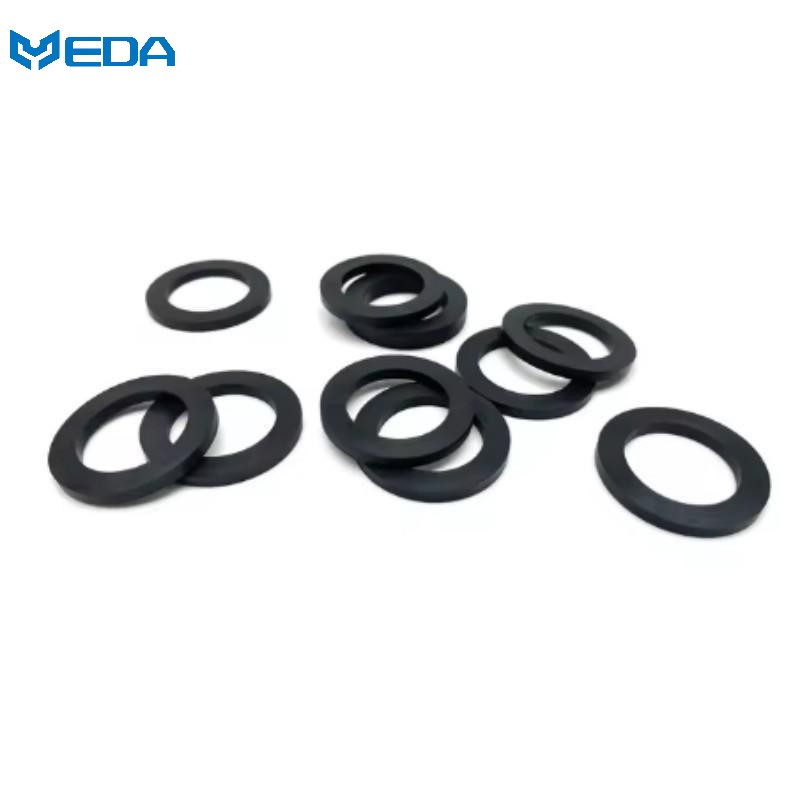

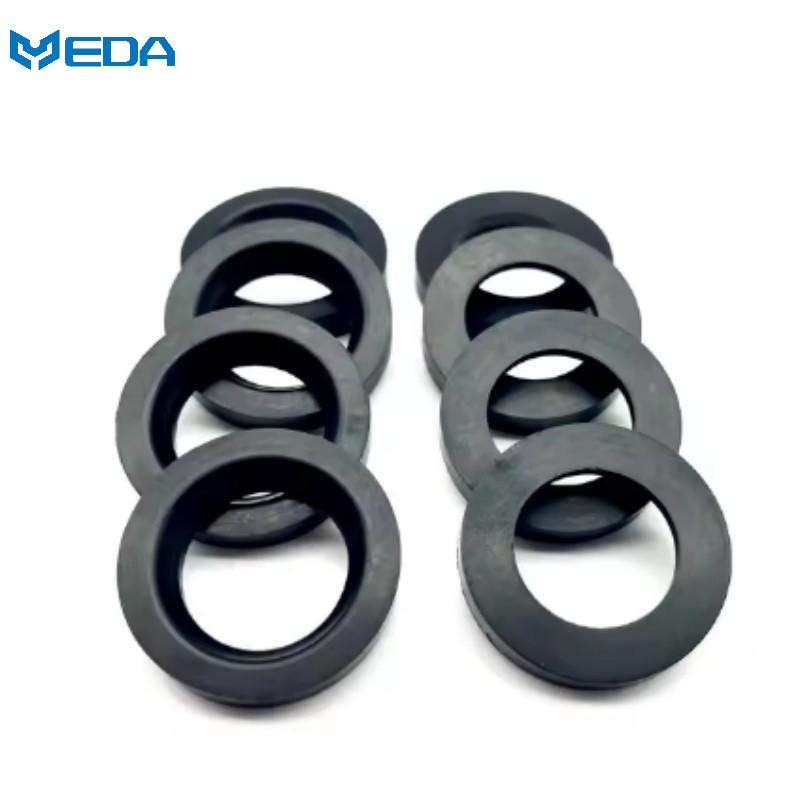

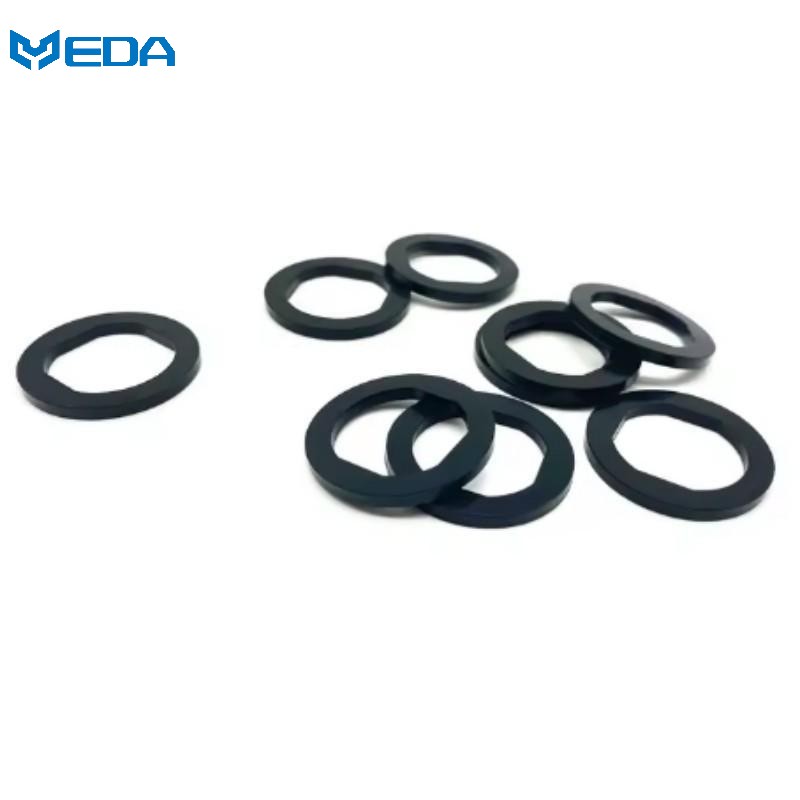

Waterproof Rubber Gasket Seal
- YiDa
- Dalian,China
- 15-20 days
- 2 billion/year
1. Waterproof gaskets are available in a broad variety of sizes and shapes. Apart from the size, the hardness, colors, and even the adhesive backing can be customized in addition to the thickness.
2. There are initially four types of sealing materials available that offer excellent performance. These can be selected, for example, if the product will be exposed to oil, corrosive media, or will be subjected to very high or low temperatures.
3. Waterproof rubber seals exhibit the properties of ageing resistance and deformation resistance very well; they will not get hard or crack even after being compressed for long periods or after exposure to outdoor sunlight.
After people install rubber gaskets, they usually run into problems such as the gaps that keep appearing (which is the main reason for water leaks) or the gasket getting cracked or stuck because it was over-compressed. Typically, these kinds of problems happen because of uncontrolled thickness tolerances, hardness variation, or a material selection that did not consider the necessary compression levels and as a result, the gasket failed.
In this way, we help you take on these challenges by supplying waterproof gaskets made in a variety of thickness from 0.3mm to 3mm. The hardness levels can be tweaked to suit different scenarios. Also, you can select from materials NBR, Silicone, EPDM, and CR. In addition, our custom molding based on drawings or samples results in minimal risk of cracking, jamming, and leakage during assembly process.
Introduction to Waterproof Rubber Seals:
Waterproof rubber gaskets are a type of flat sealing component made using high-quality rubber and die-cutting, stamping, or compression molding operations. Because of their excellent flexibility and the ability to fit very precisely, they serve as a physical barrier against water, dust, moisture, and leakage, which is why they are ideal for sealing the joints of two mating surfaces as well as the housings of various types of equipment.
Common Materials and Properties for Waterproof Gaskets:
Property | Details |
Model | Designed according to customer drawings |
Material | Supports four materials: NBR/SIL/EPDM/CR |
| Hardness Range | Customizable according to customer requirements |
Thickness | 0.3mm/0.5mm/1mm/1.5mm/2mm/3mm etc., customizable |
Color | Brown, black, green, etc., customizable according to customer requirements |
Operating Temperature | Temperature resistance varies by material. NBR: -30℃~120℃ SIL: -60℃~230℃ |
Shape | Round, square, special-shaped, perforated, slotted gaskets; shape customizable |
| Size | Standard specifications or customizable according to drawing dimensions |
Tolerance Standard | Designed according to customer requirements |
| Compression Set | SIL: 15%~25% |
Tensile Strength & Elongation at Break | SIL: 7~14 MPa；200%~400% |
Certification Standards | ISO9001, AS9100D, ROHS2.0, UL |
| Main Application Fields | Aerospace seals, automotive seals, pipeline seals, cylinder seals, engine gasket seals, cooling system gasket seals |
Applications for Waterproof Gaskets:
·Outdoor Lighting: Waterproof sealing of the housings for outdoor fixtures such as streetlights and floodlights.
·Home Appliances: Waterproof sealing of components for water heaters, water purifiers, high-speed blenders, rice cookers, and other appliances.
·Automotive Parts: Waterproof gaskets for vehicle lighting, in-car electronics, interior components, etc.
·Communication & Electronics: Airtight dustproof and waterproof sealing of communication devices, power supply casings, and measuring instruments.
·Sanitary Ware & Plumbing: Flat sealing of bathroom fixtures, such as valves, pipes, and housing flanges.
Why Choose Our Waterproof Rubber Gaskets?
Custom-made sealing solutions are our main offer. We are not limited to standard spare parts only. We have a very wide range of materials that we can easily change in terms of hardness, thickness, color, and shape according to your drawings. We produce dimensional tolerances and compression set specifications according to your standards. Besides, our products are, inter alia, compliant with ISO9001, AS9100D, and RoHS 2.0.
·NBR (Nitrile Rubber): It is a kind of material that can resist oil, wear, and aging very well. Operating temperature range: -30°C to 120°C; tensile strength: 3.5 - 21 MPa; elongation: 300% - 700%; compression set: 15% - 35%. Its low price and good performance make NBR suitable for home appliances, auto parts, and general machinery.
·SIL (Silicone): This material can operate in a very wide temperature range from -60°C to 230°C. Also, it is non-toxic, odorless, and can be made to be food-grade. Some of the physical characteristics of silicone include: Tensile strength 7–14 MPa; elongation 200%–400%; compression set 15%–25%. It is a good material for use in kitchen and bathroom appliances, drinking water equipment as well as outdoor lighting.
·EPDM (Ethylene Propylene Diene Monomer): A material which is very durable to ozone, weather changing, acids, and alkalis. Long-term outdoor exposure does not cause it to crack. Strength when stretched: 9–15 MPa; length increase: 300%–600%; remaining after compression: 15%–30%. It's perfect for outdoor electrical devices, sanitary ware and electrical enclosures/cabinets.
·Chloroprene rubber (CR) is a type of rubber that is flame-retardant, self-extinguishing, and provides a high level of safety. It has several mechanical properties such as tensile strength of 12–20 MPa, elongation of 300%–500%, and compression set of 20%–40%. It is capable of being produced in ultra-thin 0.3mm sheets or in complex shapes. It is most suitable for use in precision instruments and outdoor power equipment.
About Yida Rubber:
Our company was founded in 2006 with a core team that has 30 years of rubber industry manufacturing experience. The production site, which employs 450 people, covers an area of 37,000 square meters, and the yearly output exceeds 2 billion pieces. The firm has obtained ISO9001, ISO14001, IATF16949, and CNAS laboratory accreditations.
We have been working as partners of world-class brands such as SMC, Omron, Siemens, and Panasonic since the start. Our customers have greatly acknowledged us in various ways. In 2023, among our major achievements were being titled SMC's "Excellent Supplier of the Year" and getting the "Global Strategic Partner" accreditation from Omron. Apart from the USA, Korea, Switzerland, and Saudi Arabia, our products are also exported to the markets of Southeast Asia and Europe.
Exhibition: The 14th Shanghai International Long-Duration Energy Storage Technology Conference.
Having the chance to perform in this outstanding industry conference is not only a great opportunity to show our proficiency in the topic of rubber seals for new markets, e.g., flow batteries, but also it is a great opportunity to increase the recognition of our company and to enhance our brand image in the industry on a very prestigious platform.
FAQ:
1. Are the products resistant to oil or outdoor exposure?
Of course, we definitely recommend NBR for conditions in which there is exposure to oil. On the other hand, if it is a matter of sun, rain or contact with an acidic or alkaline medium, EPDM would be the perfect choice, especially when the exposure is for a long time. It would be a pleasure to assist you in choosing the right material that will fit your specific operating conditions perfectly.
2. Can you provide custom parts with adhesive backing? Will the adhesive peel off?
Yes. We utilize adhesive systems specifically matched to the rubber material, ensuring the backing does not detach under normal operating conditions.
