Heat Resistant Silicone Gasket
- YiDa
- Dalian,China
- 15-20 days
- 2 billion/year
1. Heat resistant silicone gaskets can withstand temperatures from -60°C up to 230°C, and even short-term exposure to 250°C, without losing their shape or cracking, thus providing a durable and reliable sealing.
2. Apart from providing several levels of protection, silicone gaskets comply with the REACH and RoHS 2.0 standards.
3. We accept custom orders for any shape, size, and hardness to efficiently match different types of industrial and civilian equipment.
Procurement Pain Point:
The aging process and failure of the seals under high-temperature working conditions are so frequent that they cause unplanned downtime and very high maintenance costs.
In practice, although the operating temperature of the equipment does not go beyond the resistance temperature limit of the gasket, the prolonged exposure to a hot, heat-oxygen environment makes normal silicone gaskets to harden and crack within only a few months, which leads to seal failure.
We solve this problem right from the start with our heat resistant silicone gasket, which is made of top-notch multi-purpose heat-resistant silicone rubber raw materials. It can endure a temperature as high as 250℃. When subjected to an aging test at 200℃×22h, its compression deformation rate is ≤30%, which puts it well above the usual silicone products.
At the same time, our gaskets keep sealing well because they stay stuck to the sealing surface even when the temperature goes up and down during the thermal cycling.
Introduction to Silicone Gasket:
Silicone gaskets are manufactured using premium-grade, high-temperature resistant silicone rubber raw materials. Their softness and toughness are the features that allow them to have high-temperature resistance, low-temperature resistance, sealing and shock absorption capabilities, and an excellent resistance to aging. Because they are non-toxic and odorless, they are friendly to the environment and safe, which makes them a universal sealing and cushioning element for different types of equipment.
Specifications of High Temp Silicone Gasket:
Item | Specification |
Material | High-temperature resistant silicone rubber raw material |
| Temperature Range | -60℃~230℃, short-term 250℃ |
| Compression Set | ≤30% at 200°C×22h |
Shape | Round, square, special-shaped, flat gasket, flange gasket, etc.; customizable upon request |
| Color | Blue, black, white, etc.; customizable |
| Thickness | 0.3mm-5.0mm; non-standard customizable |
| Hardness | Shore A 30-80; Shore A 50-70 commonly used |
Outer Diameter | Ranges from 10mm to 30mm; any size customizable |
| Hole Diameter | Φ2mm~Φ20mm; customizable upon request; cutting and punching supported |
| Density | 1.15±0.05g/m³ |
Tensile Strength | ≥8MPa |
Elongation at Break | ≥300% |
| Tear Strength | ≥25kN/m |
Volume Resistivity | 10¹²~10¹⁶Ω·cm |
Flame Retardant Rating | Up to UL94 V-0 |
| Environmental Certifications | REACH and RoHS 2.0 certified |
Applicable Media | Suitable for gases (air, oxygen, ozone), water and polar solvents (water, steam, ethanol), oils (lubricating oil, animal/vegetable oils, some transformer oils), weak acids and alkalis, thermal conduction and insulation environments, food (beverages, drinking water), etc. |
What Are the Advantages of Heat Resistant Silicone Gaskets?
1. Stability and Durability over a Wide Temperature Range.
Heat resistant silicone gaskets are produced from superior quality high-temperature resistant silicone rubber and can be used in a wide temperature range from -60°C to 230°C (250°C can be withstood for a short time). They are also able to run stably without changing shape, getting hard or developing smell at high temperatures and less likely to be aging or cracking. Besides, their compression set stays under 30% even after 200°C for 22 hours, which guarantees a longer-lasting seal.
2. Sealing and Physical Protection Performance.
Due to their softness and flexibility, high temperature silicone gaskets can easily conform to different irregular surfaces and as a result are able to provide waterproof, dustproof, oil-proof, and leak-proof effects. In addition, they have great insulation and shock absorption capabilities, which allow them to balance out the vibrations, decrease noise, and still have anti-slip features making them appropriate for complicated working conditions that require electrical isolation or mechanical protection.
3. Environmental Safety and Compatibility with Chemical Media.
Our silicone flat gasket not only meets the RoHS 2.0, REACH, and other international certifications for environment and health, but also it is non-toxic and without odour.On top of that, it shows very good resistance towards different media like air, water vapor, ethanol, lubricating oil, and weak acids and alkalis, which makes it a guarantee of safety and cleanliness for industrial and civilian applications.
4. Flexible Customization and Convenient Application.

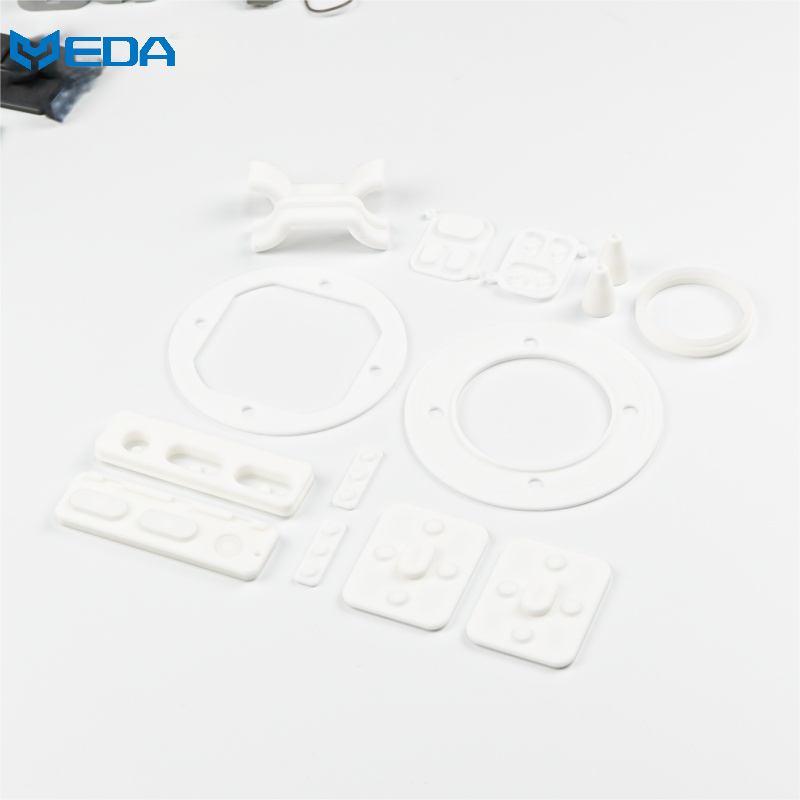

Our high temp silicone gasket comes in a wide range of shapes including round, square, and irregular shapes as well as flange gaskets. Besides thickness and hardness, the outer diameter and bore diameter can also be changed as per your specific requirements. We also offer support for cutting and drilling. On top of that, flexible specs allow for quick and easy matching with the installation requirements of different types of equipment such as boilers, ovens, pipe flanges, and automotive electrical systems.
What Are the Applications of Our Silicone Gaskets?
1. Thermal Equipment: Industrial boiler exteriors and steam conveyance systems; electric oven/dryer door frame thermal insulation and sealing.
2. Kitchen Appliances: Sealing of heating elements of internal components of air fryer, electric steamer, coffee machine, and other appliances; end face seals of high-pressure cooking appliances.
3. General Machinery and Fluid Transportation: Static seals for pump, compressor, and reactor end cap bodies; sealing of various pipe flanges.
4. Instrumentation and Electrical Control: Sealing at the process interface of instruments such as temperature sensors and pressure transmitters; protective seals and heat resistant gaskets for electrical control cabinets and junction boxes.
5. Automotive Electrical Systems: External seals to the car engine; oil and gas pipe interface seals to turbochargers; battery pack and electronic control system thermal insulation and protective gaskets in new energy vehicles.
6. Heavy Industry: Sealing of observation window and the interface of temperature measuring points in high-temperature equipment such as metallurgical heating furnace and glass melting furnace.
About Yida Rubber:

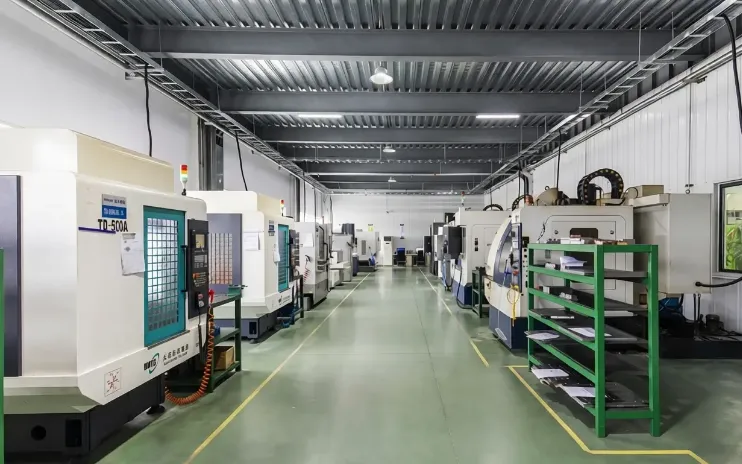

Our first step into rubber industry was in 1993 but the company was officially set up in 2006. After 30 plus years of growth, we have set up branch factories in Vietnam and Japan, completing our global strategic layout. Going forward, we will keep opening up foreign markets and show our rubber products to more customers. At present, our main factory occupies an area of 37,000 square meters, employs 450 people and has an annual production capacity of more than 2 billion pieces.
Industry Certifications:
Through various management system certification schemes, we have been accredited for IATF 16949, ISO 14001, and ISO 9001. On a continuous basis, the company raises awareness of intelligent and environmentally friendly production activities, owns a CNAS-certified laboratory, and carries out the entire system quality control to ensure product consistency and stability.
Case Studies:
We have formed long-term collaborative relationships with international brands including SMC, Omron, Siemens, and Panasonic, and apart from that, we have also been honored with the SMC "2023 Excellent Supplier" award and the "Omron Global Strategic Partner Certificate". Our products have been shipped to the United States, Japan, Switzerland, Saudi Arabia, as well as Southeast Asia and many parts of Europe as with our in-depth cooperation with more and more companies.
Exhibition Activities:
Back in June 2025, we attended the 14th Shanghai International Long-Term Energy Storage Technology Conference where we showcased our high-quality sealing solutions in a variety of materials. Besides making new contacts, we also established connections with the Vanadium Redox Flow Battery top manufacturers and professional buyers from as many as 72 countries around the globe. Using our laboratory testing capabilities accredited by CNAS, overseas manufacturing bases, and a localized service network, we were able to get recognized by many of our clients.
Meanwhile, we also showed up at the 27th Dalian International Industry Fair in the same year, where we put our main precision rubber sealing products and over 1,000 material formulation solutions on display to the audience of nearly 900 international companies. Via this venue, we not only had deep talks with our both local and overseas partners but also came up with innovative ways for the high-quality development of the manufacturing industry together.
FAQ:
1. Can this silicone flat gasket come into contact with food or pharmaceuticals?
Suitable for food contact applications. Medical-grade formulations are available upon request.
2. The gasket is relatively soft; will it tear or deform easily during installation?
It will not tear or deform under normal installation methods.
• Avoid pulling: Silicone material is malleable; do not pull the gasket forcefully during installation to avoid thinning or deformation.
• Single-use principle: It is recommended to replace with a brand new gasket during disassembly and maintenance to maintain optimal sealing performance.
3. What should I pay attention to before installing the silicone flat gasket?
Carry out surface preparation and cleaning. Thoroughly clean the surfaces of the installation flange, equipment interface, and sealing groove to ensure that they are free of oil, dust, and foreign matter. Dust and oil on the surface will influence the bonding between the gasket and the sealing surface, causing a reduction in the sealing performance and in some cases, even leakage.
