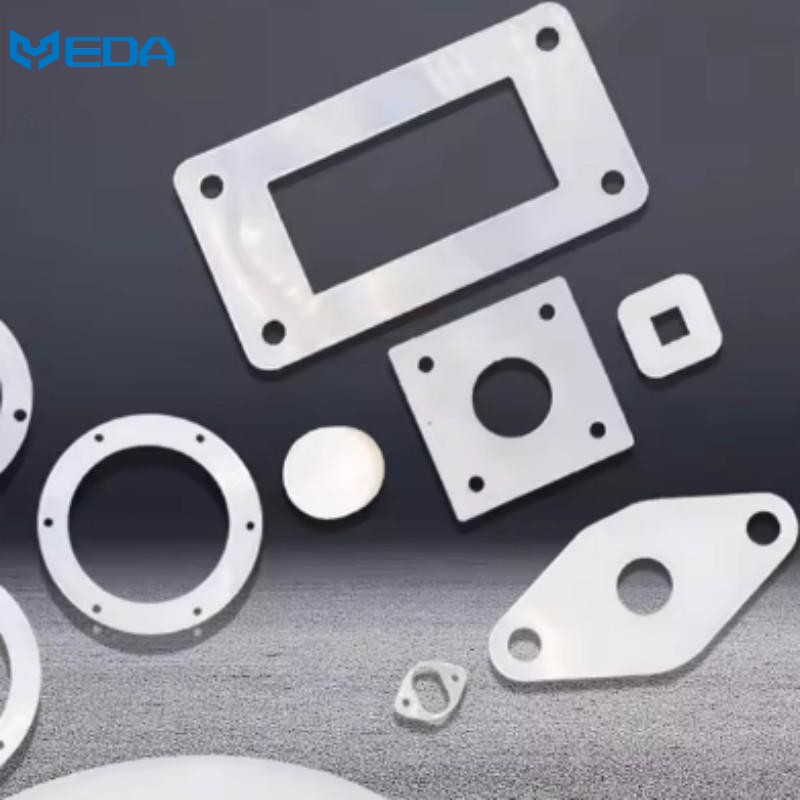

Translucent Silicone Seal Sheet
- YiDa
- Dalian,China
- 15-20 days
- 2 billion/year
1. Our silicone sealing sheets of the transparent kind give you the chance to look straight through and see what is going on inside an assembled device while you work.
2. This transparent piece of rubber sheeting can take up to 230°C temperature, it will neither change its shape or leave harmful substances.
3. The sheet, available in Shore A rubber from 40 to 70, is quite flexible and adapts well to the shapes of various equipment surfaces.
The majority of industrial buyers have experienced situations where gasket materials work well initially, yet after a few months, exposure to heat, UV light, steam, or cleaning chemicals causes them to harden, become brittle, change color, or lose their sealing efficiency. The sealing failure may result in an unpredictable equipment stoppage, increasing of the repair costs, and eventually contaminating the product.
We have come up with a transparent silicone rubber sheet as a solution to the above problem.
It can be used in many applications with large temperature fluctuations (-60°C to +230°C). Owing to great UV, ozone, and chemical resistance, it will still remain elastic even after a long time, and you will not even find hardening and cracking at all.

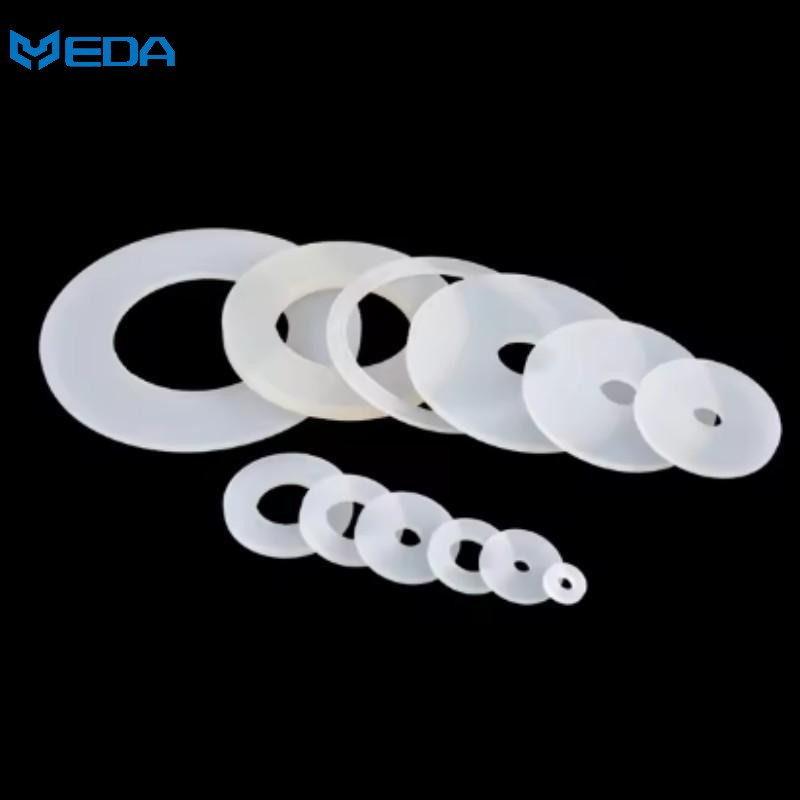

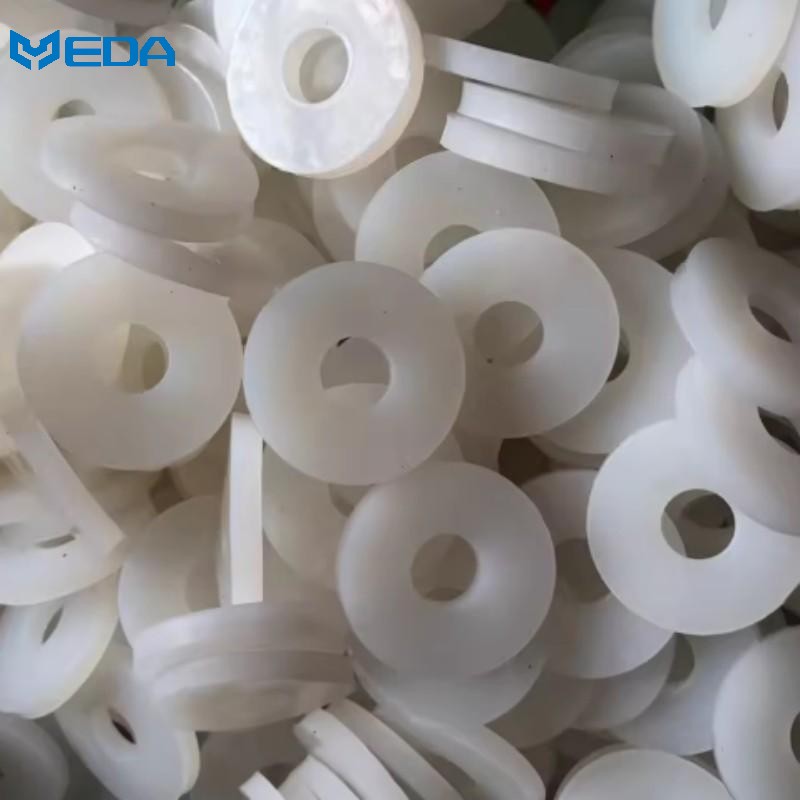

The Introduction for Our Translucent Silicone Sealing Sheet:
The translucent silicone sealing sheet we make out of food-grade silicone by using a mold. It is soft and very flexible, has a consistently translucent appearance, and has the very smooth and level surface. The rubber does not have any smell.
It can serve several purposes and even replace flat gaskets in the area like sealing, soft padding, and the protection against dust and moisture.
Main physical characteristics include:
Parameter Category | Details |
| Material | High-quality silicone rubber (VMQ) |
| Appearance/Texture | Translucent frosted / high-transparency texture optional |
Temperature Range | -60℃~+230℃ |
| Hardness | Shore A 40~70 optional (soft and easy to fit) |
Toleranc | According to customer requirements |
Size | Standard specifications or customizable according to drawing dimensions |
Common Thicknesses | 0.5mm/1mm/1.5mm/2mm/3mm etc. optiona |
Form | Whole sheets, rolls, round gaskets, square gaskets, special-shaped perforated sealing pieces (customizable) |
| Color | Milky white translucent, high-transparency |
Compression Set | ≤15%（180°C x 22h） |
| Tensile Strength & Elongation at Break | Tensile strength 4.0~12.5 MPa, elongation usually 300%~700%. Customizable according to requirements |
Environmental Standards | FDA、RoHS2.0 |
Insulation | Yes |
Waterproof & Moisture-proof | Yes |
| Sealing Performance | Has good air-tightness and liquid sealing performance |
Use of Our Transparent Silicone Seal Sheets Provide Good Sight Line to the Internal Status.
Normal sealing sheets made from the silicon material are often opaque or very dusty so that you cannot look into them to check the parts are aligned or have been properly placed after installation. These silicon sheets are made from top-grade VMQ (vinyl methyl silicone rubber), which gives them a semi-transparency or almost totally translucency characteristic that helps your line of view to the internal part which, in turn, facilitates checking, adjustment, and maintenance.
Transparent Silicone Sheets Provide Good Sealing with Great Conformability
In many occasions standard silicon mats lack good stretch or their hardness is fixed so that when the surface is irregular, they produce leaks and seal is compromised. On the basis of Shore A hardness ranging from 40 to 70, the clear rubber sheets provided by us are very pliable but still hardy, and able to closely follow the contour of different surfaces when being pressed into them. For the sealing of small cavities, they are self-regarding so that a leak-proof sealing results that is a perfect one for irregular parts or assemblies that have great dimensions tolerance.
Clear Silicone Sheeting Used By Us Is Food Safe and Has Excellent Hygienic Properties
The silicon rubber sheets for sealing purpose of the usual type will work well at temperatures from -60°C up to about 200°C, but if they are heated too much, they may get distorted or produce odors. Our transparent silicone sheets are heat-resistant to as high as 230°C, plus they are easy to sanitize with hot water or steam without any deformation or release of harmful materials. In addition, these sheets are approved for application with food and are also RoHS2.0 certified.
What Are the Main Uses for Translucent Silicone Sheets?
1. Sealing household appliances and kitchenware such as bottles, lunch boxes, pressure cookers, coffee machines, etc.
2. Waterproofing of kitchen and bathroom items such as faucets, sanitary ware, and water purifiers, etc.
3. Dust-proofing and shock-proofing of electronics and electrical appliances (transformers, lighting units, and various instruments).
4. Sterilized sealing of medical devices (medical equipment, health and wellness devices, etc.).
5. Protection and sealing of industrial machinery (gasket sealing of flanged faces, shock absorption, and anti-slip seals).
About Us:
Our company 'Yida Rubber' was started in 2006, but even then we have always benefited from a very experienced production team, which has over 30 years of production expertise. Besides that, we have a very modern facility 37,000 square meters in area and we employ 450 people. Our annual production is above 190 million (1,9) billion pieces. In this way, we can guarantee large quantity and rapid deliveries. Currently, our plants are in Vietnam and Japan respectively, and our production system has more than 1,000 exclusive raw materials formulations that are used to fabricate all kinds of rubber parts.
Business Partnerships:
Among the big names, SMC, Omron are some of our regular customers to the point. With our strict quality control, punctual deliveries of goods, and the fact that we were a trusted supplier at every point, we have earned several major awards. SMC has honored us as the "2023 Excellent Supplier", and Omron has recognized us as the “Global Strategic Partner”.
Quality Certifications:
We are accredited on ISO9001, ISO14001, IATF16949 standards and CNAS-competent laboratories. Exporting our products worldwide, such as to USA, Japan, Southeast Asia, Europe, and Saudi Arabia demonstrates our ability and qualification to serve global markets.
Exhibitions & Events:
We have taken part in a few large-scale exhibitions such as the 14th Shanghai International Long-Duration Energy Storage Technology Conference and the 27th Dalian International Industry Exhibition. In those events, we presented various products, from silicone parts and rubber diaphragms down to rubber gaskets.
We were highly appreciated by the business community and customers at these showcases.
Delivery Assurance:
The minimum order quantity usually required (MOQ) from us is set at 1,000 pieces. Yet, it is worth asking us directly in case of having the MOQs for made-to-order products.
In general, goods matching your order for the standard size will deliver within 15 days of order confirmation. As a matter of fact a time needed for development of a prototype or first sample is typically 1–2 weeks; the production mold making takes 10 days; whereas an amount of time for the mass production after sample approval is about 2–3 weeks in the average.
FAQ:
1. Is clear silicone sheeting suitable for environments involving highly corrosive solvents?
It is not suitable for long-term exposure, as this can compromise sealing performance and service life.
2. How should it be installed to achieve optimal sealing results?
Ensure that contact surfaces are flat and free of burrs or irregularities during installation. Please contact us for detailed installation instructions.
