Shock Absorbing Silicone Buffer Block
- YiDa
- Dalian,China
- 15-20 days
- 2 billion/year
1. Our rubber shock absorber blocks have excellent bounce-back ability and do not get easily compressed. They can handle very low and very high temperatures (silicone materials with special high temperature can be up to 230°C).
2. We can personalize materials, hardness, sizes, and colors to help our clients get the best shock absorbers for their different equipment.
3. We have silicone compounds that are able to resist fire to a degree that they can satisfy UL94 V-0 standard (depending on the exact grade of the material).
When using standard rubber buffer blocks for a long time or the temperature changes from high to low, buffer blocks will be damaged such as losing of the shape and not recovering. Consequently, will cause the vibration damping failure, increasing the vibration and noise of the equipment and component loosening or damage due to the inability to cushion. Besides, frequent replacements will increase maintenance costs and cause that production lines are not working efficiently continuously.
Our Solution:
Our shock absorption silicone rubber blocks are made using a high-resilience silicone formula and integrated compression molding process. We impose a strict control of permanent compression set rate to less than or equal to 30% (100°C × 22h) while at the same time our resilience rate is more than or equal to 80%. They rapidly spring back to their original shape even after being compressed several times, hence the intervals between their replacements are greatly increased.
Moreover, we have an option for you to adjust its hardness (Shore A 40-85), which can perfectly fit the actual load of the equipment minimizing the risk of excessive compression right at the source.
Introduction to Rubber Shock Absorber Blocks:

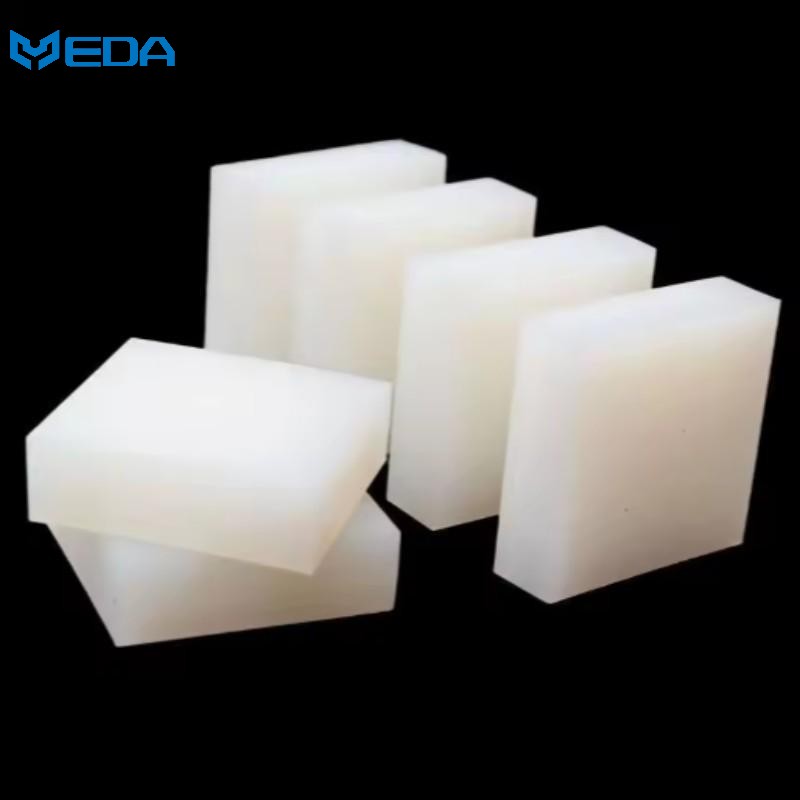

We make our shock absorption silicon buffer blocks by integrated compression molding of high-resilience silicon. They have the quality of being soft yet very elastic, doing best in vibration damping, cushioning, noise reduction, movement limitation and protection from impact. They resist compression, are dimensionally stable and give reliable performance even at temperature extremes. Hence, they can be used for many different kinds of equipment vibration damping and cushioning.
Specifications for Shock Absorption Silicone Rubber Blocks:
| Parameter | Specification |
| Material Selection | Ordinary Silicone , Gas-Phase Silicone , High-Temperature Resistant Silicone , Hardened/High-Elasticity Silicone , etc. |
| Temperature Resistance | -60℃ ~ 200℃ ,special high-temperature resistant silicone up to 230℃ |
| Dimensions | Customizable per customer requirements |
| Thickness | Standard 2mm–50mm ,non-standard thicknesses customizable |
| Hardness | Shore A 40~85 |
| Color | Black, Pure colors, Blue ;any color customizable |
| Density | 1.10~1.25 g/cm3 |
| Tolerance | Manufactured per drawing tolerance requirement |
| Mounting Method | Supports embedded inserts, slot positioning |
| Compression Set | ≤30% (100℃ × 22h) |
| Rebound Rate | ≥80% (depends on material grade) |
| Tensile Strength | 3.0 MPa – 12.5 MPa |
| Tear Strength | 15 kN/m – 55 kN/m |
| Flame Retardancy | UL94 V-0 flame-retardant formulation available |
| Certifications | ISO9001, AS9100D, ROHS 2.0 |
| Common Styles | Square buffer block , Round shock pad , Trapezoidal limit stop , Cylindrical rubber pad , Perforated mounting buffer column , Custom-shaped anti-collision block , Machine foot damping pad |
| Operating Environment | Indoor, Outdoor, Humid, High-Temperature, Vibration Equipment, etc. |
What Are the Advantages of Shock Absorption Silicone Rubber Blocks?
1. Shock absorption, noise reduction, and high resilience/compression resistance.
These square shock pads made of silicone rubber are produced through integral molding technique with high-resilience silicone. Being flexible and highly resilient, they can effectively reduce vibration transmission during equipment operation and thus provide the benefits of shock absorption, cushioning, and noise reduction simultaneously. Besides, they are remarkably resistant to compression—having a compression set of ≤30% (100°C × 22h) and a resilience rate of ≥80%—which guarantees their quick recovery even after multiple loadings and an extended lifespan.
2. Weather resistance across a wide temperature range and chemical stability.
Shock absorption square silicone rubber pads are quite resistant to very high or very low temperatures (standard range -60°C to 200°C; special high-temperature formulations can reach 230°C) which arouses the idea of their uses for electric heating devices, outdoor equipment, and cold-climate conditions (for example, winters in northern regions). Apart from the material characteristic, they are not only resistant to old age and ozone, but by nature of the water and moisture-resistance property, they can be assumed to work flawlessly even in the most difficult of environments, e.g. characterized by the prevalence of humidity, dust, exposure to the elements, or typical industrial environment.
3. Flexible material selection and customization capabilities.
We have a very broad selection of materials for you, such as the regular silicone, fumed silica, silicone capable of withstanding high temperatures, and silicone with high hardness and/or high resilience. Customization for Shore A hardness from 40 to 85 is also possible, so the softness or rigidity of the product can be adapted to the needs of the customers. When it comes to size, both the inner diameter and the thickness can be made to non-standard sizes. Furthermore, a few other customer-oriented services that we offer are custom coloring, inserting embedded parts, and even providing positioning slots. We also do mold-making from drawings or samples given to us by customers.
4. Multiple safety certifications and eco-friendly, flame-retardant properties.
Our products have ISO9001, AS9100D, and RoHS 2.0 certification. They are also in conformity with UL94 V-0 flame-retardant standard and can self-extinguish very well thus ensure electrical equipment operation safety.
In addition, the materials have been tested and proven to be non-toxic, odorless, clean, and environmentally friendly. They have been certified to meet the RoHS 2.0 standards. Besides, these materials may also be safely used in areas with very demanding environmental standards, such as food processing machines, medical equipment, and cleanrooms.
What Are the Application Areas for These Rubber Shock Absorber Blocks?
According to the details stated above, our square silicone rubber shock pads can be used as shock absorbers, cushions, impact protectors, and noise suppressors for equipment. The main areas of use are mechanical equipment, electromechanical enclosures, fans and pumps, household appliances, automation systems, instruments, car interiors, furniture shock absorption, building door bumpers, equipment for new energy, and molds for cushioning/limiting parts.
Introduction to Yida Rubber.

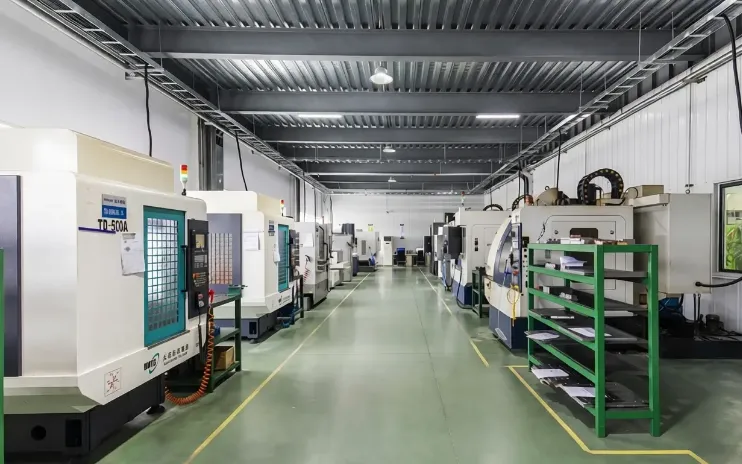

Founded in 2006, Yida Rubber brings together a core team of professionals with more than 30 years of manufacturing experience. The company has a 37,000 sqm factory and a staff of 450 people. The company has set up global strategic layout through branches in Vietnam and Japan. It is a large-scale first-level manufacturer of rubber products, with a yearly output capacity of over 2 billion units.
Industry Certifications.
So far, we have gotten 52 patents, 4 software copyrights, and have developed more than 1,000 of our own material formulations. Our laboratory is CNAS-certified, and we implement systematic quality control procedures in order to guarantee that our products are consistent and stable, which is also supported by various management system certifications such as IATF 16949, ISO 14001, and ISO 9001.
Cooperation and Exports.
Our goods have reached many parts of the world such as South-East Asia, Europe, Africa, etc. Besides that, we have carried out very successful, long terms with many global companies including SMC, Omron, Siemens, Panasonic, Minebea, Eppendorf and ALPINE. In particular, we were recognized at SMC as "Excellent Supplier of the Year (2023)" and certified as "Omron Global Strategic Partner".
Exhibition Event.
The global drive for cleaner energy and the need to meet "dual carbon" targets have made long-duration energy storage technology one of the crucial components in the development of a new power system. Our company was lucky enough to be invited as an exhibitor at the 14th Shanghai International Long-Duration Energy Storage Technology Conference in June 2025. There, besides meeting 927 exhibitors from all over the world, we presented different types of rubber ring products that were recognized for their precision, variety, performance, and aesthetics by the attending audience.
FAQ:
1. How do I determine if this product is suitable for my equipment?
It is possible to make a quick judgment about the working conditions of your equipment (temperature, medium, etc.) and its load capacity. Our range of products is so versatile in customizing materials, hardness, and sizes; once you share with us the specifics of the operating conditions, we'll be able to suggest the best option.
2. Are there strict limitations regarding mounting hole positions and thickness when replacing the buffer block? Can it match the existing unit?
Every detail of this product, including its length, width, height, and mounting hole positions, can be completely customized. Also, its color is subject to adjustment based on your preferences. So all you have to do is upload a drawing or a sample, and we will be able to produce the molds in order to guarantee that it fits exactly to the original mounting location.
