High Temp Silicone Seal Gasket
- YiDa
- Dalian,China
- 15-20 days
- 2 billion/year
1. Our high temperature rubber gaskets resist becoming brittle, cracking, or changing their shape at temperatures up to 250°C.
2. Besides insulating and thermally isolating, they are also highly water and dust resistant, so it is not a surprise that these gaskets are often used for sealing and protection purposes in harsh environments.
3. A wide range of standards is offered as well as the possibility for customers to have their individual requirements met by us through creating new production methods.
Why Do Standard Rubber Gaskets Struggle in High-Temperature Conditions?
Common commercial materials such as natural rubber and nitrile rubber can offer a certain degree of sealing, however, such rubbers on a very extended period of time exposed to high temperatures are prone to becoming hard, losing elastictiy, cracking, and getting permanently compressed. All these issues in the end cause sealing failure and result in air, water, or oil leaks.
Professional High Temperature Rubber Gasket Solutions.
Our high temperature rubber gaskets are designed for long-term exposure to a temperature range of -60°C to 250°C and can withstand momentary temperature peaks up to 280°C. Even when subjected to high temperatures, they maintain their flexibility and resistance to brittle cracking. Permanent compression set of ≤30% (conducted at 150°C for 22 hours) indicates that these gaskets have excellent recovery, and the sealing force remains constant even after a long period of compression.
Apart from being available in Shore A hardness grades of 60-80, our gaskets are fully customizable in terms of shape and size. Moreover, due to outstanding material properties, these gaskets are capable of solving the problem of seal failure at elevated temperatures.
With a tensile strength of 4-12.5 MPa and an elongation at break of 200%-500%, our gaskets can prevent cracking caused by tension during installation or vibrational impact effectively.
Item | Specifications & Material Details |
Material | Silicone Rubber |
| Hardness | Shore A60 / A70 / A80 |
Size | Standard specifications or customizable per drawing |
| Thickness | 0.5mm / 1mm / 1.5mm / 2mm / 3mm, etc., customizable |
Color | Primarily black, other colors customizable |
| Temperature Range | Long-term: -60℃~250℃, Peak: up to 280℃ |
| Shape | Customizable to any shape |
Compression Set | ≤30% (150℃×22h) |
| Tensile Strength & Elongation at Break | 4~12.5 MPa；200%~500% |
Media Resistance | Resistant to hot air, ozone, and hot water; good resistance to some animal and vegetable oils; not resistant to petroleum-based mineral oils, strong acids, or strong alkalis |
| Electrical Insulation | 10¹⁵ ~ 10¹⁶ Ω |
The Core Advantages of High Temp Rubber Seals.
1. Resistant to Ultra-Wide Temperature Range, Not Brittle at High Temperatures and Not Hardened at Low Temperatures.
Our high temperature rubber seal, made with premium silicone rubber material, has long-term temperature resistance from -60℃ to 250℃. It can also withstand a short term peak temperature of 280℃. The product remains quite flexible even after undergoing severe temperature changes, which help to reduce problems caused by high temperature aging brittleness or low temperature hardening failure. It will be a great fit for a sealing environment with temperature alternating between hot and cold.
2. Features High Resilience and Toughness, Ensuring a Long Sealing Lifespan.
High temperature rubber gaskets manufactured by us show a compression set of ≤30% (150°C × 22h) which means that they still exhibit full recovery and maintain the sealing force after being compressed for a long duration.
They possess a tensile strength ranging from 4 to 12.5 MPa and an elongation at break of 200% to 500%. Both parameters help in providing them not only the strength to resist tearing but also the flexibility, thereby, enabling them to cope not only with the strains caused by the unpacking but, also, to the vibrations and impacts of the machinery.
3. Insulation, Thermal Resistance, And Protection Against Water and Dust.
The high temperature rubber gasket material naturally possesses electrical insulation properties and is a poor conductor of heat. Besides having a surface that is tightly packed, it resists heat transfer and simultaneously prevents current leakage while it also efficiently safeguards against water and dust. For this reason, it is ideal for uses that require all-around protection, like electric cabinets, outdoor facilities, and wet, high-temperature environments.
4. Customizable to Meet Diverse Assembly Requirements.
Our hardness range is from Shore A60 to A80. Apart from color, size, and shape, we can do full customization based on your drawings or samples. Standard items are shipped within 15 days, and we are also able to offer flexible responses to non-standard requirements. We handle assemblies from simple sealing to highly specialized high-temperature parts.
What Are the Applications for High Temp Gasket Seals?
If you desire to prevent heat loss in ovens, baking equipment or other kitchen appliances, then our high-temperature gasket seals are the perfect option. In the industrial sector, these high temperature sealing solutions are used for sealing static high-temperature machinery and pipe flanges and can also find application as a protective measure for lighting fixtures, new energy battery packs, and home appliance covers. Due to their superior thermal stability and elasticity, these high temperature rubber gaskets will be able to provide you with durable, reliable sealing even under extremely hot conditions.
About Yida Rubber:

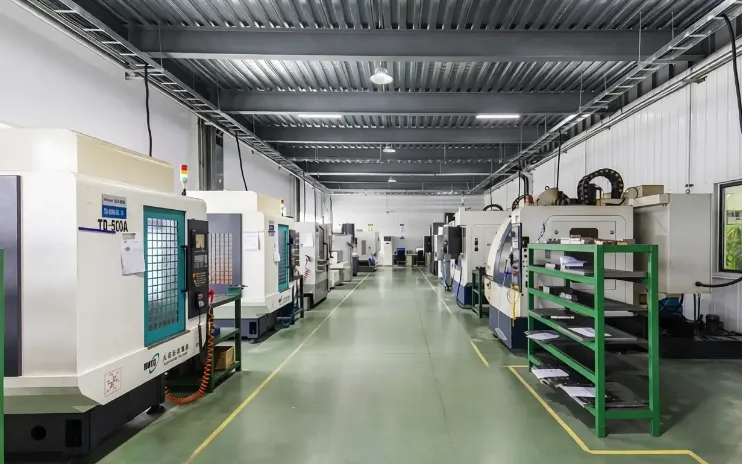

Large-Scale Production and Efficient Delivery Capabilities.
Founded in 2006, Our company benefits from a core group of people with a manufacturing experience of over 30 years. We operate a 37,000-square-meter factory, have 450 employees, and can produce more than 2 billion pieces per year. Our minimum order quantity (MOQ) is 1,000 units, and we can deliver within 15 days after the confirmation of standard specifications; we provide options for shipping by land, sea, and air.
Endorsements from Premium International Clients and Industry Recognition.
Among the brands we serve, there are some of the biggest names globally, including SMC, Omron, Minebea, and Alpine. We are honored to have been recognized with awards like SMC's "Excellent Supplier of the Year 2023" and Omron's "Global Strategic Partner Certificate." Such recognitions emphasize the robustness and significance of our long-term collaborations with these companies. Our products are being used in different markets in Europe, Southeast Asia, and other parts of the world thanks to exports.
Shanghai International Long-Duration Energy Storage Technology Conference & Exhibition.
In June 2025, we attended the Shanghai International Long-Duration Energy Storage Technology Conference & Exhibition. Here we introduced our range of silicone rubber gaskets specially designed for energy storage equipment, electrolyte tanks, and circulation piping. Industry clients have made great responses to these products.
Rigorous Quality Systems and Long-Term Service Assurance.
We have passed ISO9001, ISO14001, IATF16949 certifications and have CNAS laboratory accreditation. We also have complete patents and test reports.
FAQ:
1. What is the difference between high temperature rubber seals and fluoroelastomer (FKM) gaskets?
High-temperature rubber seals have a broader operating temperature range and at the same time are non-toxic and odorless, which makes them ideal for food, electrical appliance, and new energy sectors. Fluoroelastomer gaskets are known for their excellent resistance to oils and chemical substances.
2. How do you ensure the high temp rubber seal perfectly matches my existing flanges or grooves?
We can customize mold opening and die-cutting based on the drawings or physical samples you provide.
