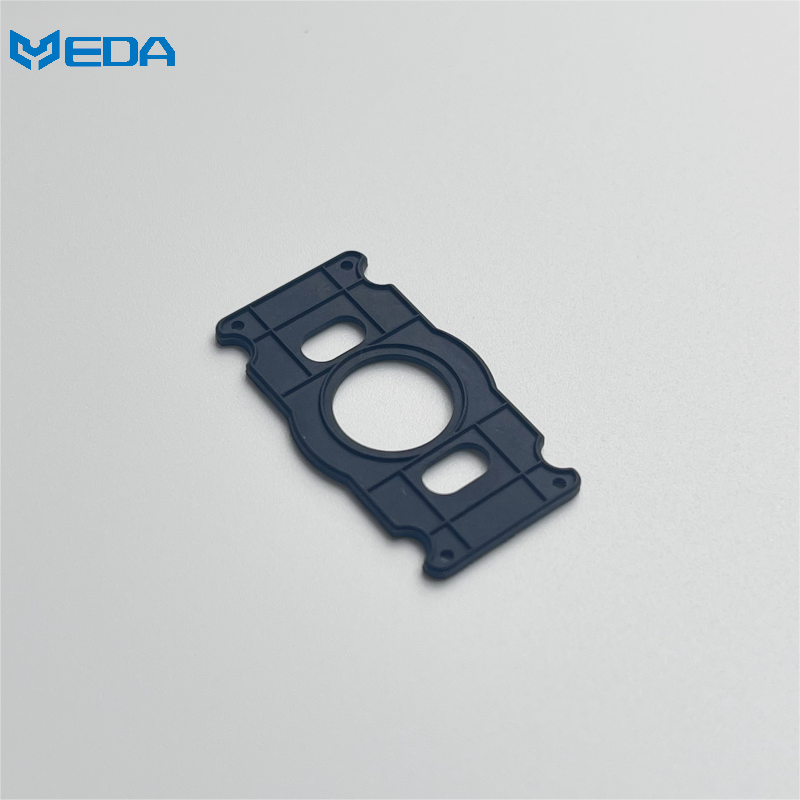

Anti-slip Mechanical Rubber Gasket
- YiDa
- Dalian,China
- 8-10 weeks
- 2 billion/year
1. Slip resistance rubber gasket greatly enhance the surface friction when pressure is applied in comparison to the usual flat rubber gaskets. Nevertheless, the real effectiveness will depend on the properties of the materials, the lubrication conditions, and the installation torque.
2. Industrial grade NBR with a very high rubber content and a tightly controlled volumetric swelling rate of ≤5%. This characteristic ensures stable and durable bolt preload and, when used under proper conditions, may lead to fewer maintenance intervals (real results are dependent on specific equipment and installation conditions).
3. The mold was developed to have a tolerance of ± 0.005mm, which makes it possible to produce grooves very accurately as per customer layouts. In addition, these gaskets are closed and ready for on-the-spot mounting; delivering them does not just save the time for the assembly process but also lowers the risk of the occurrence of assembly challenges or leaks because of the dimensional deviations.
Seal Failure Caused by "Displacement/Slippage" In High-Frequency Vibration and Oily Environments
Industrial machinery or power equipment operation generates several changes that silicone rubber gaskets need to address one is ensuring airtight and oil-tight seals. However, "positioning and anti-slip" functionalities are equally important. What can be considered the most dangerous risk is the combination of continuous high-frequency vibration and the infiltration of lubricating oil or coolant that leads to the formation of an "oil film" on the surface of standard rubber gaskets. The friction coefficient drastically decreases resulting in mechanical displacement or "shifting." Not even half a millimeter of misalignment can cause the seal to blow out immediately; also, mechanical transmission components can become misaligned leading to a very expensive downtime for repairs or even a catastrophe of equipment by damage.
Detailed Yida Solutions:

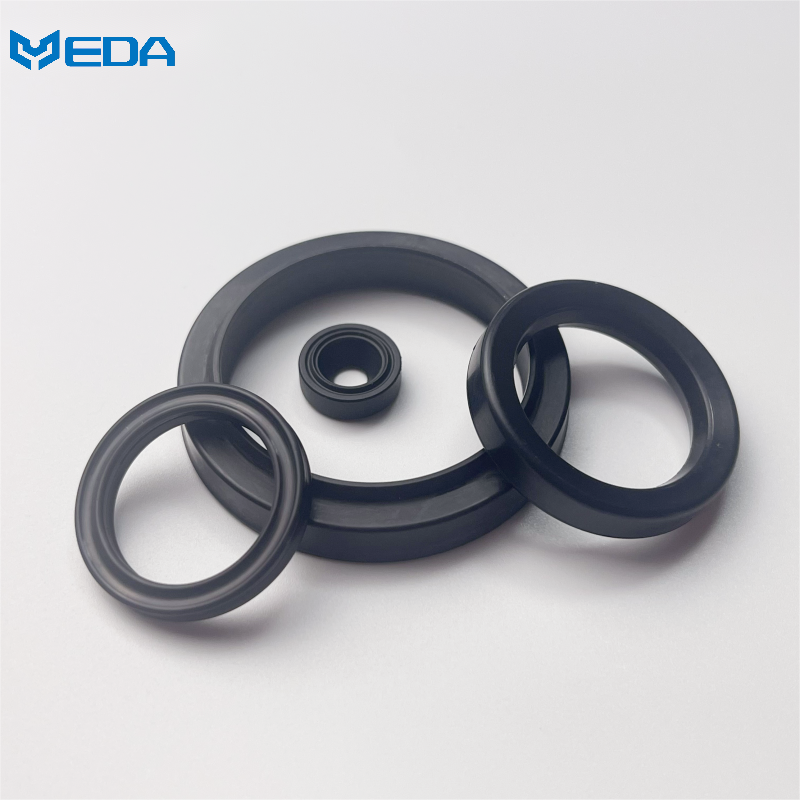

Physical Anti-Slip Matrix Design: Yida adds "anti-slip protrusions" or a "diamond-pattern interlocking matrix" to the surface of the anti-slip rubber gasket. When the bolts are tightened, this geometric structure through the physical interlocking effect break the continuous oil films and increase the effective contact area. As a result, the position of the gasket is stabilized, the risk of displacement is reduced, and the shifting of the gasket under vibration is minimized.
High-Friction, Oil-Resistant Formulation: The design uses special modified NBR or FKM compounds that have very tightly controlled volumetric swelling upon exposure to industrial lubricants (tested according to ASTM D471 and ASTM Oil No. 1 standards). This keeps the "grease effect" (situation when the material softens due to oil immersion) from happening, so the gasket will continue to have a high level of static friction performance throughout its lifetime and as a result, the occurrence of "oil-induced slippage or displacement" will be reduced.
Technical Specifications：
| Attribute Name | Details |
| Processing Service | Cutting/Molding |
| Brand Name | Yida / EDA |
| Model Number | As per the client's drawing |
| Color | Black (standard), blue, green; other colors available upon request |
| Material | NBR, EPDM, FKM (customizable) |
| Hardness Range | 55–75 Shore A (hardness customizable) |
| OEM/ODM Service | Customization is possible for any size, thickness, or shape irregularity, including drilling and molding options. Special materials - resistant to oil, acids/alkalis, and extreme temperatures, as well as high-resilience and wear-resistant grades - are capable of being modified to specific operating conditions. We provide batch supply, custom engineering solutions, and original equipment manufacturer production. |
| Operating Temperature | NBR：-30~120℃ |
| EPDM：-40~150℃ | |
| FKM：-20~200℃ | |
| Shape | Single-side/double-side anti-slip pattern, integral vulcanization, without internal layers. |
| Size | Customizable shapes |
| Tolerance Standard | 2mm, 3mm, 5mm, 8mm, 10mm (non-standard thicknesses available upon request) |
| Quality | As per customer specifications |
| Design Format | 100% inspection |
| Compression Set | 2D & 3D drawings available |
| Tensile Strength | ≤ 25% (100°C × 22h) |
| Elongation at Break | ≥ 10 MPa (≥ 1,450 psi) |
| Executive Standard | US Standard: ANSI/ASME B16.21 |
| German/European Standard: DIN 2690, EN 1514-1 | |
| Japanese Standard: JIS B2404 | |
| Chinese National Standard: GB/T 9126 | |
| Performance Characteristics | Positioning with anti-slip feature, anti-loosening, sealing without leaks, vibration and noise reduction, resistance to wear and compression are also aspects taken into account. |
| Offering different processing options such as custom processing, cutting, punching, shaping of irregular forms, and molded forming. | |
| Main Application Areas | The application can cover a wide range of items that would include general machinery, electromechanical equipment, hydraulic and pneumatic systems, automation equipment, assembly lines systems, fans, pumps, gear reducers, motor bases, equipment cabinets/enclosures, and pipe flanges. Examples of equipment anchoring, vibration damping, anti-slip measures, sealing, and anti-loosening are only the ones that require the use of the applications. |
| Warranty | If the product is stored under the specified conditions (temperature <30°C, humidity <70%, protected from light), we will replace free of charge any unopened product that fails due to material aging—provided the failure is not caused by human error and is confirmed upon inspection—within 3 years of the delivery. The warranty does not cover any failures caused by incorrect installation or use beyond the specified limits. |
| Production Capacity | Monthly production exceeds 300 tons. |
| Lead Time | In case of standard sizes, the lead time is 15 days after order confirmation. The average production cycle for prototypes or first-article samples ranges from 1 to 2 weeks. If there is a need for mold development, the production mold will take 10 days to manufacture. As for mass production, the typical lead time after sample approval is about 2-3 weeks. |
| Packaging | Packed in a PE bag, then placed in a carton |
| Selling Units | Single item / 1 pc |
| Single Package Size | As per the buyer's request |
| Single Gross Weight | As per the buyer's request |
| Shipping Method | By sea, air, or express |
| Port of Loading | Dalian Port or as per the buyer's request |
| Certificates | IATF 16949 Automotive Quality Management System |
| AS9100D Aerospace Quality Management System | |
| ISO 14001 | |
| ISO 9001 | |
| RoHS 2.0 |
Yida’s Technical Advantages:
Reverse engineering is a key technology used in our research and development as well as production of sealing products. Working on more than 1,000 proven formulations allows us to do an exact copy of the process so as to satisfy customer's requests precisely. Each raw material is identified and controlled through an automatic error-prevention system using barcodes in combination with a two-person control system for imported materials. This is how we ensure the same physical properties over different batches.
In the process of developing and manufacturing sealing products, we take advantage of our extensive formulation database and application knowledge to align the materials with the manufacturing methods, thus allowing us to quickly meet the specific operating needs of customers. Raw materials are controlled by barcode traceability and supply chain quality control systems to ensure that batches are stable and physical properties are consistent, which in turn helps to provide trustworthy and reproducible product performance.
Applications:
This type of machinery is suited for the following usages: general equipment, electromechanical devices, hydraulic and pneumatic systems, automation tools, production lines, ventilation systems, pumps, gear reducers, motor mounts, equipment cabinets/enclosures, and pipe flanges. It is an excellent choice for equipment stabilization, vibration damping, anti-slip features, sealing, and anti-loosening measures.
About Yida:
Yida has been continuing to work on the industrial rubber field since its foundation in 1993 and has been a part of the industry for more than 30 years. The company, based in the Chinese city of Dalian, has a state-of-the-art production plant of 37,000 square meters and a great number of more than 450 qualified professionals from the industry.
Global Presence: We have factories in Vietnam and Japan to offer more help to the world's needs, and our Dalian center can manufacture up to 300 tons per month.
Technical Expertise: Utilizing a robust portfolio of over 1,000 fully developed formulas and precision reproduction techniques, Yida has been accumulating a rich industrial rubber sealing knowledge base by hundreds and thousands of production experiences.
Worldwide Presence: Our high-precision sealing products are currently distributed in the most important industrial markets all over the world such as the USA, Germany, Russia, Japan, France, the UAE, Saudi Arabia, Mexico, Thailand, and Vietnam.
Authoritative Certifications:
Yida holds the following certifications:
Aviation & Quality Systems: AS9100D & ISO 9001:2015
Automotive & Environmental Management: IATF 16949, ISO 14001
Global Compliance: RoHS 2.0, UL, NSF/WRAS (Drinking Water Safety)
Internal Control: Strict adherence to AS9100D and ISO 9001 management standards.
Key Partners:
Yida has established long-term partnerships with many internationally recognized enterprises through stable and trustworthy cooperation.
They deliver reliable products and services globally to sectors such as industrial manufacturing, automation control, new energy, electrical equipment, and automotive components.
We have customers from different industries including automotive electronics, industrial automation, smart manufacturing, new energy, power equipment, and fluid control. Some of the main brands who have placed their trust in our company are Delphi Technologies, Alpine Electronics, Nidec, Siemens, Panasonic, Omron, SMC Corporation, CATL, China Electric Equipment Group, and Rongke Power.
Logistics, Packaging, and Responsiveness:
1. Flexible Logistics:
Our logistics services feature a multi-modal mix comprising of sea, air, and land transport scenes, which may be adjusted to your timing priorities and budget through the provision of safe and direct delivery of goods as well as other solutions.
2. Custom Brand Packaging:
We offer packaging enhancements such as personalized PE bags, cartons carrying your brand logo, and color-coded protective packaging that not only safeguard the product but also promote your brand effectively.
3. Business & Production Efficiency:
Order Minimum: Starts at 1,000 units.
Sample First: Free samples provided (freight collect).
Timeline Management:
Standard Specifications: Rapid delivery within 15 days of order confirmation.
New Product R&D: Sample development on average typically takes between 1 and 2 weeks; production of molds takes only 10 days; large-scale production can be done in 2-3 weeks after sample approval.
After-Sales Guarantee:
We offer an extended 3-year warranty on our products:
Conditions: Storage in recommended environments (temperature <30°C, humidity <70%, away from direct light).
Commitment: During the first 3 years after delivery, Yida will supply free replacements once it is confirmed that the reason for the material aging or failure was not due to human error.
Exclusions: Warranty does not cover installation errors or usage exceeding the product's design specifications.
Spotlight on the 27th Dalian International Industrial Expo:
May 2025 saw Yida incredibly deliver a speech at the Dalian Free Trade Zone International Convention and Exhibition Center.
During the conference held under the theme, "Digital Intelligence, Collaboration and Green Development," nearly 900 top global companies, including us, took a decision to demonstrate through our extremely faultless rubber products the ways in which the sealing problems that hamper the closures can be overcome in the intelligent manufacturing - a turning point of the industry era.
