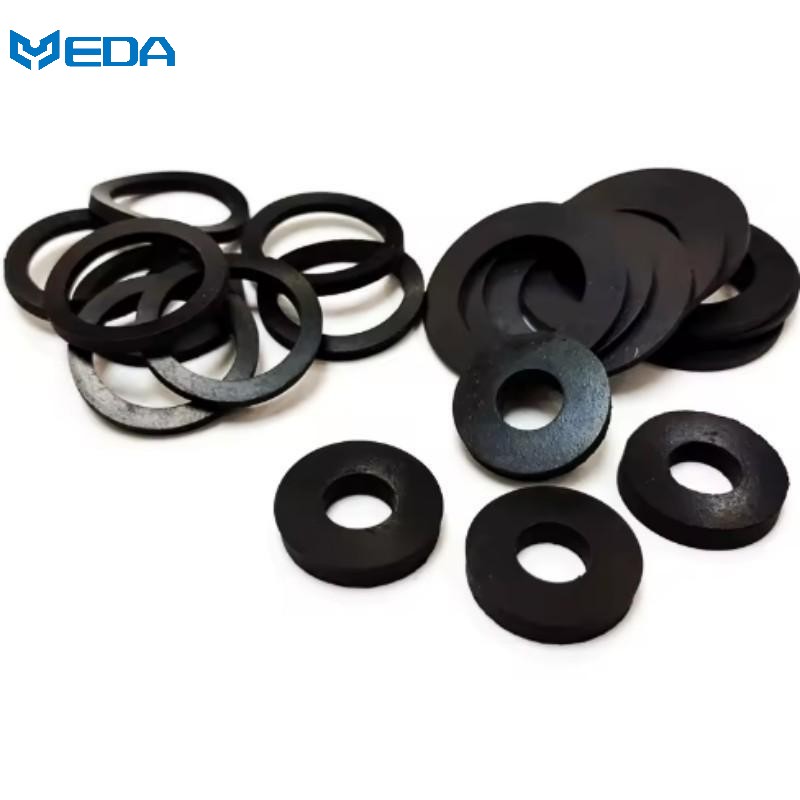

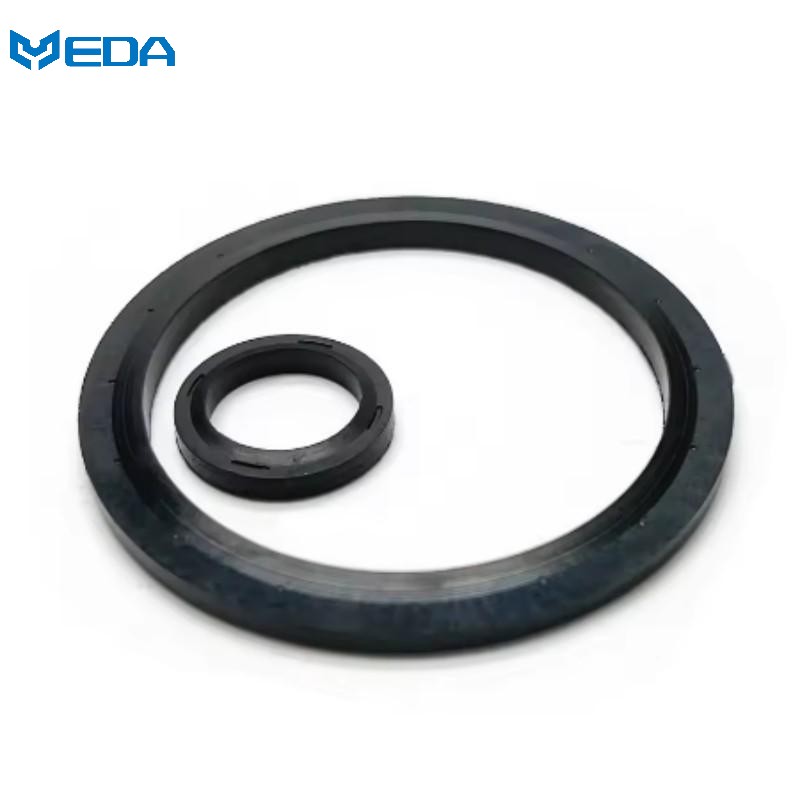

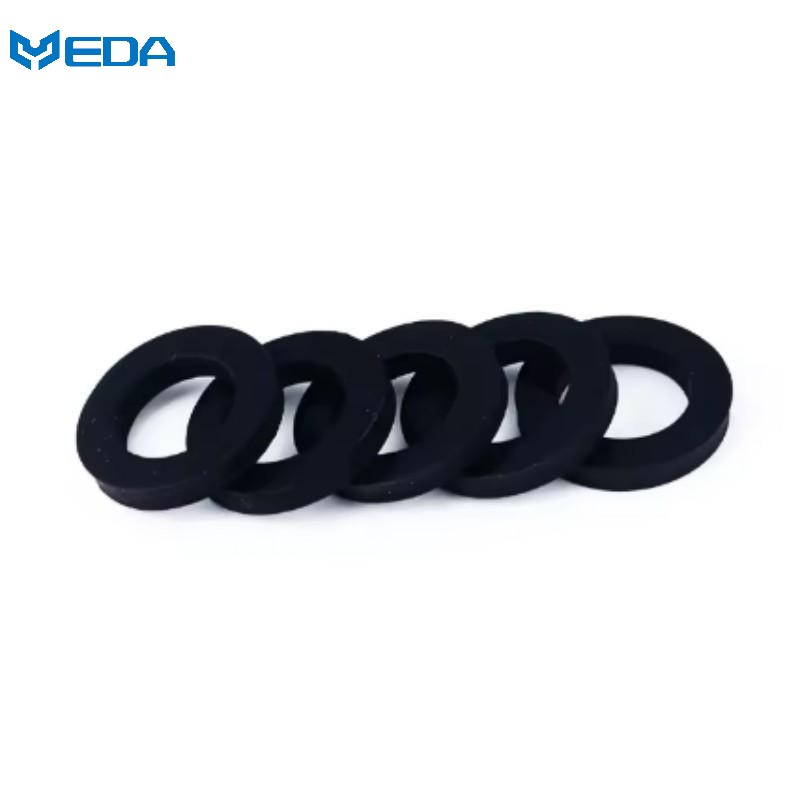

Industrial NBR Sealing Gasket
- YiDa
- Dalian,China
- 15-20 days
- 2 billion/year
1. Rapid Prototyping & Mold Development: It's possible to develop molds in 10 days, after which the prototypes are usually ready within 1 to 2 weeks.
2. Comprehensive Technical Support: Able to support the conversion of 2D/3D drawings and provide completely personalized services including hardness (20°–90°), color, and other aspects.
3. Processing Services: We can help you with the secondary processing of adhesive backing and cutting. These are only two of the methods we use to help you fit your installation requirements.
"Creep relaxation" under high-pressure/high-temperature cycling leads to bolt loosening and subsequent leakage.
In real working conditions, some NBR (nitrile rubber) gasket types especially those containing a lot of filler or low effective rubber content can have different levels of compressive stress relaxation and permanent deformation when they are exposed to continual compressive loads or thermal cycling.
This process leads to the following performance changes:
Gradual reduction in gasket thickness and a decline in recovery force.
Decay of bolt preload over time.
Reduction in contact pressure at the flange interface.
Gradual failure of the sealing interface, increasing the risk of leakage.
Sometimes, even if the assembly were initially compliant with the standards, when operating, if internal system pressure gets close to or is more than actual residual sealing contact pressure, the leakage may happen progressively or intermittently.
In engineering practice, such problems normally don't show up in static testing of the factory but rather through the gradual operation for a long time or the thermal cycling, which could result in:
Increased frequency of on-site re-tightening and maintenance.
Higher costs associated with unplanned repairs.
Elevated risk of system downtime.
Reduced reliability of the sealing system.
Yida Solutions:
High-Resilience Virgin Formulation: Yida keeps a tight check on the rubber content of its NBR rubber gasket and restricts the use of recycled materials and inorganic fillers, opting the best NBR formulation for particular operating conditions. Selecting an NBR formulation with the right acrylonitrile content as per media requirements, we deliver the best elastic recovery (Elastic Recovery ≥ 40%, Internal Test Method). Thus, the gasket produces a continuous "counter-force" against the flange faces even at high bolt loads, which successfully prevents bolt loosening.
Controlled Vulcanization Process:
We use a rheometer to constantly check each batch of rubber compound during the vulcanization process to make sure the rubber molecular chains are fully cross-linked. This method significantly lowers Nitrile butadiene rubber gasket compression set and also the long-term creep phenomenon, thus reducing maintenance frequency.
Technical Specifications：
| Attribute Name | Details |
| Processing Service | Cutting/molding |
| Brand Name | EDA |
| Model Number | As per client's drawing |
| Color | Black (standard), blue, green; other colors customizable |
| Material | NBR (Nitrile): Oil and wear-resistant; for general hydraulic, pneumatic, and industrial equipment |
| Hardness Range | 70 ± 5 Shore A (customizable: 50–90 Shore A) |
| OEM/ODM Service | Acceptable |
| Operating Temperature | -20°C to +120°C (-22°F to +248°F) |
| Shape | Customized shape |
| Size | 0.5mm – 20mm (standard: 1.5mm/1/16", 3.0mm/1/8"); customizable |
| Tolerance Standard | As per customer design |
| Quality | 100% inspection |
| Design Format | 2D & 3D drawings available |
| Compression Set | ≤ 25% (100°C × 22h) |
| Tensile Strength | ≥ 10 MPa (≥ 1,450 psi) |
| Elongation at Break | ≥ 250% |
| Oil Swell (Volume Change) | ≤ 10% (In IRM 903 oil, 100°C × 70h) |
| Executive Standard | US Standard: ANSI/ASME B16.21 |
| German/European Standard: DIN 2690, EN 1514-1 | |
| Japanese Standard: JIS B2404 | |
| Chinese National Standard: GB/T 9126 | |
| Performance Characteristics | 1. Excellent oil resistance: Compatible with engine oil, diesel, hydraulic fluid, lubricating oil, and other oil-based media. |
| 2. Stable temperature resistance: The temperature range of -20°C to 120°C is supported; the material remains tough and does not change size or shape at regular operational conditions. | |
| 3. Dependable sealing: It has excellent elasticity and high resistance to compression; can efficiently block oil, water, and air leaks. | |
| 4. Wear and aging resistance: Resistant to extrusion and cracking; offers a long service life. | |
| 5. Cost-effective: Affordable pricing; the preferred choice for general industrial sealing applications. | |
| Main Application Areas | Applications include hydraulic components, oil pumps and valves, building machinery, car parts, pipe flanges, water pumps and air compressors, electromechanical devices, and general-purpose hardware seals. |
| Warranty | As long as the product is stored according to the conditions mentioned (the temperature should be less than 30°C, humidity less than 70%, and the product should be protected from light), we will provide a free replacement for any unopened product failing due to material aging - the failure is not caused by human error and will be verified by inspection - within three years from the delivery date. Warranty will not cover any products that are improperly installed or used in a manner that goes beyond the specified scope. |
| Production Capacity | Monthly production exceeds 300 tons. |
| Lead Time | For standard sizes, the lead time is 15 days after order confirmation. The average production cycle for prototypes or first-article samples is 1–2 weeks; if mold development is involved, the production mold takes 10 days to manufacture; and the average lead time for mass production following sample approval is 2–3 weeks. |
| Packaging | Packed in a PE bag, then placed in a carton |
| Selling Units | Single item / 1 pc |
| Single Package Size | As per the buyer's request |
| Single Gross Weight | As per the buyer's request |
| Shipping Method | By sea, air, or express |
| Port of Loading | Dalian Port or as per the buyer's request |
| Certificates | IATF 16949 Automotive Quality Management System |
| AS9100D Aerospace Quality Management System | |
| ISO 14001 | |
| ISO 9001 | |
| RoHS 2.0 |
Applications:
Hydraulic instruments, components of oil pumps and valves, heavy-duty construction machinery, automobile parts, pipe flanges, water pumps and air compressors, electromechanical equipment, hardware sealing in general, and other similar applications.
Technical Capabilities:
R&D Empowerment: We have a portfolio of over 1,000 benchmark-grade formulation systems, which we can draw on to use reverse engineering as our main tool in deconstructing complex operating conditions and ensuring that the end result is a precise clone of the original technical specifications.
Supply Chain Control: Our measure is to have double-checking of imported raw materials as well as using an automated barcode traceability system that can detect human errors at the source so as to ensure that every batch of the product has the same physical properties.
Lean Manufacturing: Skilled workers with 20 years of experience in technical fields use Makino machining centers from Japan and high-precision EDM equipment for machining and are able to achieve a very tight tolerance of ±0.005mm for the most critical mold cavities.
Smart Quality Management: We have established a three-tier defense system—combining AI visual recognition, 2D precision measurement, and comprehensive manual verification—while strictly enforcing statistical quality controls such as CPK, SC, and MSA.
About Yida:
Yida's foundation dates back to 1993 and was finally recognized with the official establishment of Dalian Yida Precision Rubber Products Co., Ltd. in 2006. Being a National High-Tech Enterprise deeply rooted in base rubber technology and having full internal R&D and manufacturing systems, Yida was the first private company in Northern China to receive a national-level management excellence award.
Scale and Capacity: We operate an industrial park spanning 57,000 m², with a production facility area of 36,000 m².
Global Footprint: The Group includes six holding companies and employs more than 450 personnel. We own three main production facilities in Dalian, China, as well as an overseas factory in Vietnam. Our R&D and marketing divisions operate out of Shanghai and Japan.
Supply Capability: We are able to produce more than 300 tons every month at our Dalian factory. We have many of our world-class sealing products delivered to the US, Germany, Russia, Saudi Arabia, Japan, France, and other countries. Servicing various industrial sectors.
Comprehensive Authoritative Certifications:
Yida’s compliance is validated by multiple international quality system certifications:
Core Certifications: AS9100D (Aerospace Quality Management), IATF16949 (Automotive Industry), ISO 9001, and ISO 14001.
Environmental & Compliance: RoHS 2.0, UL, NSF/WRAS (Potable Water Grade), etc. Certifications: Fully implemented AS9100D & ISO 9001:2015 quality management systems.
Partners:
Yida has been continuously offering dependable products and services to customers all over the world in various sectors such as industrial manufacturing, automation control, new energy, electrical equipment, and automotive components as well as developing long-term collaborations with many internationally famous companies. Our customers are from different industries such as automotive electronics, industrial automation, intelligent manufacturing, new energy, power equipment, and fluid control. Besides, some of our customer examples are Delphi Technologies, Alpine Electronics, Nidec, Siemens, Panasonic, Omron, SMC Corporation, CATL, China Electric Equipment Group, and Rongke Power.
After-sales Support:
Our confidence in quality is backed by data, and our commitment to customers is paramount:
Warranty Period: A comprehensive 36-month quality guarantee.
Replacement for Failure: Provided the product is stored according to specifications (T < 30°C, Humidity < 70%, kept sealed and away from light), Yida pledges a free, full replacement if material aging or failure occurs—through no fault of the user—within three years of delivery and upon verification.
