EPDM Rubber O-Ring For Plumbing
- YiDa
- Dalian,China
- 15-20 days
- 2 billion/year
1. EPDM rubber O-rings from us are manufactured with a special composition intended for pipework ensuring a robust and waterproof sealing.
2. The food-grade EPDM O rings we offer comply with the FDA standards for food-contact materials; the material used is highly pure and resistant to the migration of substances that could be harmful to the contact medium.
3. Besides providing the standard sealing solutions, we also make molds for manufacturing seals of particular colors, sizes, and shapes. These service offerings can be used for both industrial and residential piping systems.
Small leaks that last for days or weeks or months can cause a huge waste of water and increase the cost of maintenance in the long run. Many contractors have experienced that sealing rings, which are very tight when they first get installed, quickly become hard, crack, and lose their flexibility after only one summer or winter season.
Our EPDM rubber O-rings are able to solve the above problems as they keep very good elasticity for a long time. They are made from high-quality new EPDM rubber with a very small amount of reclaimed rubber, so they stay very resilient over the temperature range from -40°C to 120°C. They are still flexible and resistant to cracks, thus capable of providing a good seal even when they are subjected to very hot or very cold environments.

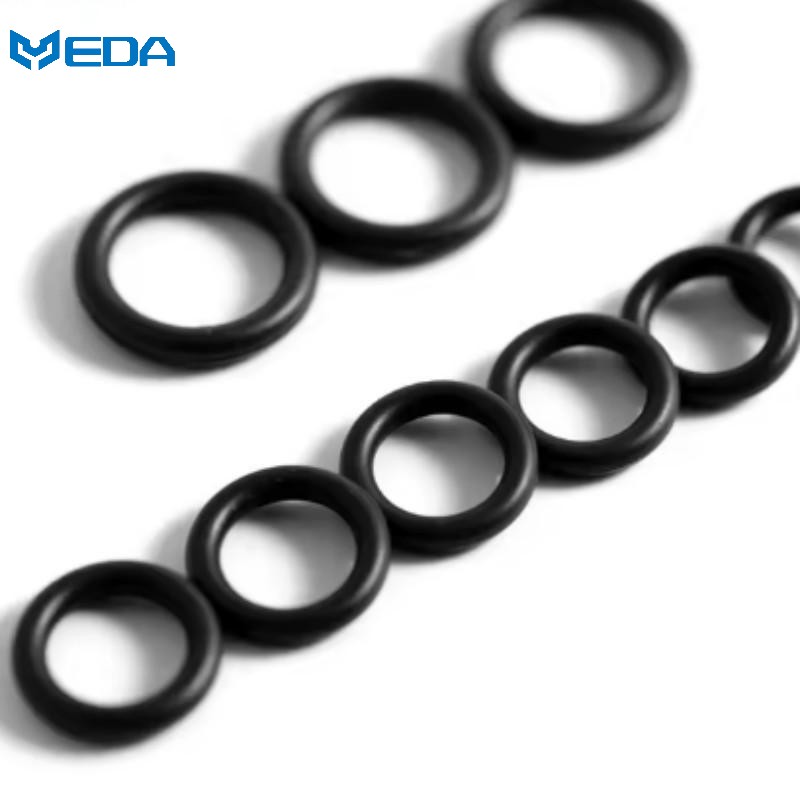

Introduction to Metric EPDM O rings:
These O-rings, accurately molded from top-grade EPDM, find application in a variety of pipework systems such as water supply and drainage, HVAC, chemical processing, and city infrastructure. Besides excellent resistance to weather, water, and aging, they provide very good sealing performance, which makes them a multi-purpose, high-functionality sealing option for pipeline flanges, joints, valves, and fittings.
Specifications and Parameters for EPDM Rubber O-rings Plumbing Applications:
| Project | Specifications and Material Details |
| Material | EPDM (Ethylene Propylene Diene Monomer Rubber) |
| Standard Hardness | Shore A60/70/75/80 |
| Durable Temperature | -40℃ ~ 120℃ |
| Style | O-rings, flange seals, pipe gaskets, and custom-shaped seals can all be customized |
| Color | Mostly black, color customization available |
| Execution Standard | National, American, Japanese standards |
| Inner Diameter | Common sizes 20mm - 50mm (non-standard sizes can be customized) |
| Wire Diameter | 1.5mm-5.7mm (customizable) |
| Compression Permanent Deformation Rate | ≤30% (100℃ × 22h) |
| Compression Rate | Static seal: 15%~30%; Dynamic seal: 8%~20% |
| Tensile Strength | ≥10MPa |
| Elongation at Break | 300%-400% |
| Density | 1.15±0.05g/cm³ |
| Ozone Resistance Level | Excellent ozone resistance |
| Insulation | Yes |
| Environmental Protection Level | Food contact compliant (FDA formula limited) |
Compatible Media for EPDM O rings:
Inferior seals tend to have too many fillers and less rubber to reduce the price, which makes the end products harden and crack easily. On the other hand, our products use only virgin EPDM rubber and the Mooney viscosity is very carefully controlled to give a stable performance.
They can be used with tap water, rainwater, sewage, hot water, cooling water, steam, and even with weak acid or alkaline solutions. On the other hand, they are not intended for use with mineral oils or fuels.
Core Advantages of EPDM Rubber O Rings:
1. Water-resistant acids, alkalis, and temperatures at the same time make it possible to minimize the risks of failures even when subjected to hot and cold changes.
EPDM is custom-made for water environments; when properly formulated according to the FDA, it can also meet food contact material standards. Usually, its temperature suitability spans from -40℃ to 120℃, so the material will not change its properties in the coldest frozen or hottest water pipes. Even if the conditions keep changing from hot to cold, the rubber keeps its wonderful elasticity and bounce back features.
2. Long-lasting sealing elasticity, resistant to compression deformation, effectively preventing leaks.
EPDM rubber o ring tends to have a very good spring-back property, with a permanent set (under 100℃×22h) held at ≤30%. Its excellent compressibility and adaptability enable it to effectively seal even minute gaps in pipe flanges, valves, joints, and other parts, therefore, preventing the leaking of water, air, or fluids, as well as assisting the pipeline systems in minimizing the risk of leakage in both dynamic and static sealing conditions.
3. Complete standard specifications, ample stock, supporting custom orders.
We mainly support three major standards: GB (China), ANSI (US), and JIS (Japan). At the same time, we are able to make non-standard and special-shaped seals according to the drawings or samples. Our purpose is to satisfy the varying requirements of industrial and residential pipeline projects.
Practical Applications of EPDM O Rings for Plumbing:
Our EPDM o-ring for plumbing can be used for sealing and connecting a wide range of individual pipeline systems such as municipal water supply and drainage pipelines, HVAC water pipes, fire protection pipelines, chemical fluid pipelines, underfloor heating pipes, water pumps and valves, pipe flanges and joints, hydraulic equipment, and central air conditioning pipelines.
The Strength of Yida Rubber.
Our company has been deeply involved in the rubber industry since 1993 and officially registered in 2006. We now have over thirty years of experience in rubber R&D, production, and manufacturing. The company currently boasts solid scale and industry influence.
· Factory area: 37,000 square meters.
· Number of employees: about 450.
· Annual production capacity: 2 billion pieces.
Quality Management System.
We've been certified for ISO9001, ISO14001, and IATF16949 by Industry standards, and our laboratory is CNAS-certified as well. Besides, we have a fully integrated management system that traces the entire process of our products from raw materials to finished ones.
Warranty Policy: If products are stored in recommended conditions (temperature <30°C, humidity <70%, away from light), unopened products that are not human-caused failure can be replaced free of charge after testing confirmation within 3 years from the date of delivery.
Testing Mechanism: We provide performance and quality test reports along with corresponding test videos to ensure transparency and traceability.
Partners:
To enhance the entire service system worldwide, the company decided to open a branch in Japan, a sales center in Shanghai, China, and two factories in Vietnam, thus enabling cross-border collaborative manufacturing and localized response capability. The products have been exported to Europe, Southeast Asia, and other regions. Cooperation with famous companies such as SMC, Meberia, Eppendorf, and ALPINE has also been established for a long time.
Exhibition Activities:
Our company was present at the 14th Shanghai International Long-Duration Energy Storage Technology Conference and Exhibition on June 2025. We not only exchanged ideas with 927 global exhibitors but also had a great opportunity to present our product range, i.e. rubber O-rings, rubber gaskets, and rubber diaphragms, to customers both at home and abroad.
FAQ:
1. Can this EPDM rubber o-ring for plumbing be used in drinking water pipes?
Yes. The product can be made with materials that meet relevant regulations and provide certifications for target markets. It's eco-friendly, non-toxic, and odorless. When formulated according to FDA standards, it meets the requirements for food contact materials and is suitable for drinking water systems.
2. Is the EPDM rubber o-ring for plumbing resistant to hot water and steam?
Yes. Its operating temperature range is -40℃ to 120℃, and it has good resistance to hot water, cooling water, steam, and other media.
