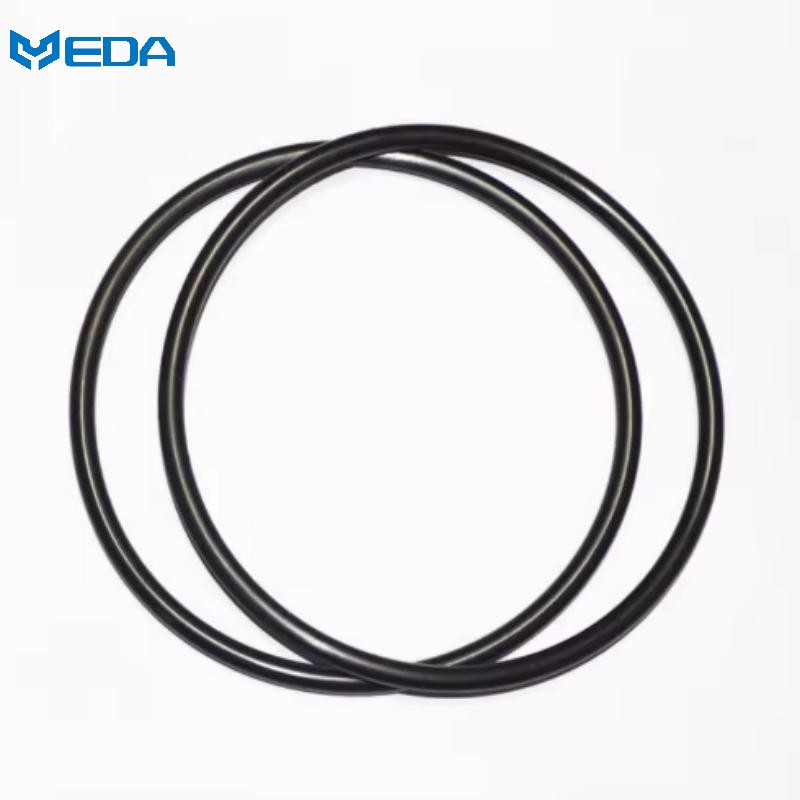

Metric Standard Rubber O-Rings
- YiDa
- Dalian,China
- 15-20 days
- 2 billion/year
1. Metric O-rings by our company come with precise inner diameter and cross-section tolerances, providing a perfect fit with metric seal grooves for quick installation.
2. We sell several types of rubber materials including NBR and EPDM. These can be chosen according to different usage conditions.
3. Optimum material choice with proper usage of seals will minimize the risk of cracking and thereby eliminate the main cause of equipment failure due to seal malfunction.
If industrial equipment is run for long hours, then an O-ring with fluctuating quality can cause downtime, high maintenance costs and at worst, customers could complain.
Our metric rubber O rings solve this problem by being produced strictly following the national standard GB/T 3452.1, having standardized inner diameters and cross-section thicknesses that guarantee a precise fit of the O rings in the equipment sealing grooves. We provide different types of materials - for example, NBR and EPDM - so that you can pick the perfect metric sealing solution for your specific operating conditions and, by this way, avoid trial-and-error or sudden repairs.
What Are Metric O-Rings?

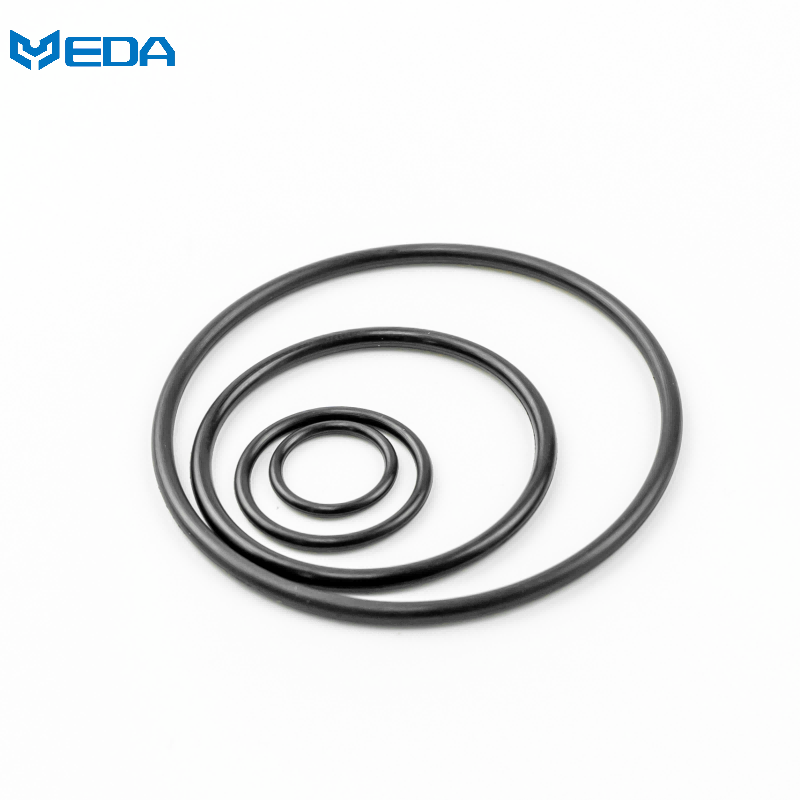

Metric rubber O rings are produced to precise metric measurements and made from superior vulcanized rubber. Their size tolerances meet the requirements of GB/T 3452.1 standard, making these rings fit perfectly into metric-standard sealing grooves. They are basic, highly adaptable sealing components for different machines, piping, valves, and hydraulic and pneumatic uses. Besides that, we offer customized solutions for unusual metric square cut O-rings.
| Parameter Classification | Specifications |
| Executive Standard | GB/T 3452.1 Metric Standard (Class N) |
| Common Wire Diameters | Standard cross-section diameters: 1.8, 2.65, 3.55, 5.3, 7.0 mm (custom sizes available) |
| Inner Diameter Range | 0.5–1000 mm (customizable) |
| Cross-sectional Tolerance | Determined by size |
| Common Materials | Supports various materials including NBR, EPDM, VMQ, FKM, SIL, etc. |
| Standard Hardness | Shore A 60–90 (customizable) |
| Color | Black (custom colors available) |
| Operating Temperature | -60°C to 320°C (depends on material; temperature resistance varies by material—please consult us for details) |
| Pressure Range | Static pressure: ≤40 MPa Dynamic pressure: ≤10 MPa (Requires proper groove design and lubrication) |
| Compression Set | ≤20% (120°C × 22h) |
| Maximum Dynamic Sealing Speed | 0.5 m/s |
| Environmental Compliance | Compliant with RoHS 2.0 and REACH |
| Media Resistance | Various materials available to meet specific requirements for oil, water, high-temperature, and acid/alkali resistance |
What Are the Advantages of Our Metric O-Rings?
1. Standardized dimensions for seamless installation and replacement.
We make our items very carefully in line with the GB/T 3452.1 metric standard, so that they have the same inner diameters and wall thicknesses as the sealing grooves of most pieces of equipment. This will give you a perfect fit right after you install them, and you will completely get rid of any leakage risk that may occur due to size differences.
2. Diverse material options to handle various demanding operating conditions.
We have a variety of materials for you to choose from like NBR, EPDM, Silicone, and FKM. Our materials are suitable for different applications, whether it is exposure to oil media, high-temperature steam, chemical acids and alkalis, or even extremely cold outdoor conditions. Also, different materials are capable of withstanding the temperature range of -60°C to 320°C, hence, they can be used in different harsh environments.
3. Durable sealing performance and long service life.
Our metric rubber O rings have excellent elasticity that comes back to the original state. The compression set is ≤20% (120°C × 22h). So that they can deliver the initial sealing performance for a long time. The O-rings are so tight in the sealing groove, both when stationary and when moving, that they almost completely cut off leak paths. If the right material that is designed and recommended for operating conditions is used one can get cracking down to a minimum.
In Which Industries Are Metric Square Cut O Rings Used?
Metric square cut O rings from our range are perfect for various applications such as hydraulic cylinders, machine tools, valves in plumbing, household appliances, instrumentation, agriculture machinery, general automation equipment, air compressors, and oil pumps and valves - basically any sealing situation conforming to standard metric designs.

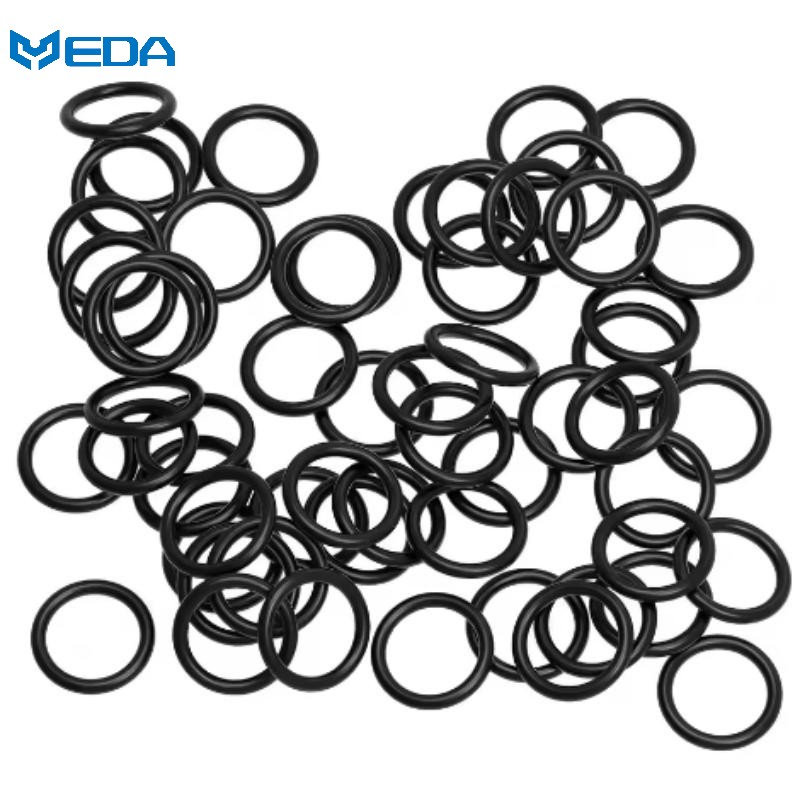

Small metric O rings, because of their extremely precise dimensions and cleanliness, are very often found in precision instruments, medical devices, sensors, laboratory equipment, and other applications where a clean, miniature sealing solution is needed.
Choose Yida Rubber to Ensure Greater Reliability for Your Equipment.
Our company was formed in 2006 and it has developed a lot since then. Today, we have a very big plant of 37,000 square meters and about 450 people working for us. We also increased our presence worldwide by opening factory branches in Vietnam and Japan, and our annual production capacity is now over 2 billion units.
Proven Capabilities and Certifications.
We have ISO9001, ISO14001, and IATF16949 certifications. Our lab is also CNAS-accredited. In our collection, we have 52 patents (4 of which are invention patents and 48 are utility model patents), 4 software copyrights, and more than 1,000 self-developed material formulations. Through quality and ongoing innovation, we continually strive to provide our customers with high-end sealing products.
Forging Mutually Beneficial Partnerships with Renowned Enterprises.
Alongside internationally renowned brands like SMC, Omron, and Siemens, we feature as a longtime partner in their works. We are proud to receive rewards such as SMC’s "2023 Excellent Supplier" and Omron’s "Global Strategic Partner" accreditation. While stepping up our international presence, our products are today actually being delivered to the United States, Russia, Japan, Southeast Asia, and Europe, among others.
Expanding into Overseas Markets.
We attended such important events as the 14th Shanghai International Long-Duration Energy Storage Technology Conference and the 27th Dalian International Industry Fair. Taking advantage of the opportunities these platforms provide, we have exhibited more than 1,000 tailor-made products to the international public—those solutions that help meet the needs of premium industries like automobiles, medical equipment, new energy, and aerospace.
Service and Support.
Typically, we keep a full stock of our standard size products and the delivery can be made within 15 days after the order confirmation. MOQ is 1,000 units, and price reduction is given on large quantity purchase. Besides, we promise to supply you with trustworthy, enduring support before and after the sales. Do not hesitate to call us if you want to learn more about our products.
FAQ:
1. Do small metric O rings have stable size and performance characteristics from batch to batch?
Yes. We have a rigidly controlled finished-product sampling inspection program and also have ISO9001 and IATF16949 certificates. Different batches of the same product specification still show very little variation in dimensional tolerances, hardness, and material properties.
2. How exactly is the precision control of your metric O-rings different from the standard products available in the market?
We thoroughly monitor the inner diameter and cross-section tolerances as per GB/T 3452.1 (Class N). We ensure our products to have a very high level of consistent dimensions which mean they can reliably perform sealing once installed correctly. On the other hand, typical products have the problem of dimensional variations as a result of not properly controlling shrinkage, therefore, they get distorted or leak after being installed.
3. How should I choose between NBR and FKM for high-temperature, oil-exposed applications?
If the temperature is ≤120°C and the environment consists of standard mineral oil, then please select NBR. However, FKM should be chosen when the temperature goes above 120°C or the medium is corrosive; FKM has a heat resistance capability up to 320°C. You can share the exact details of the medium and temperature with us, and our technical team will help you determine the correct option.
