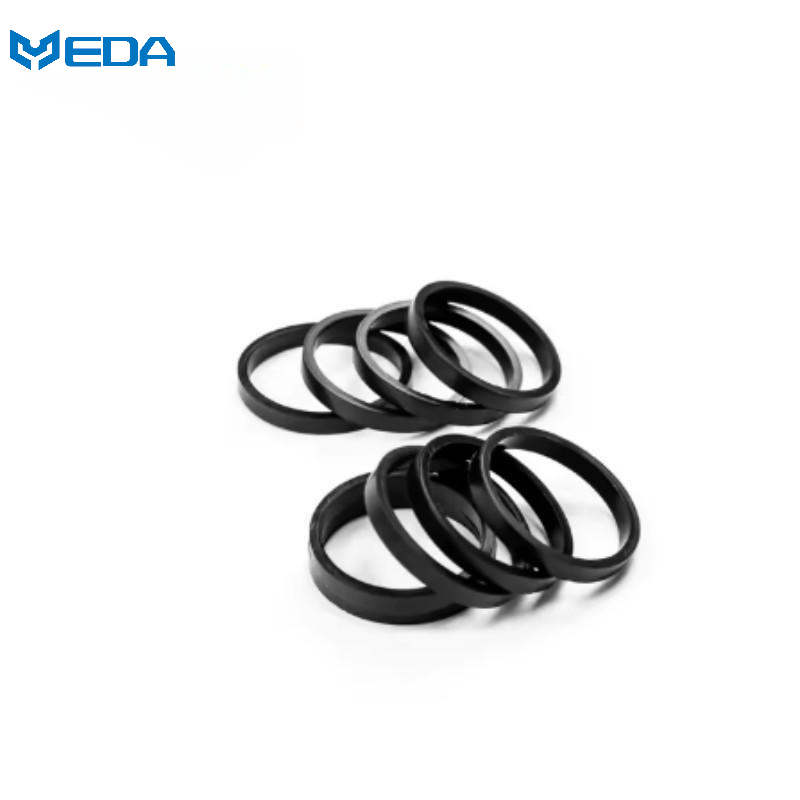

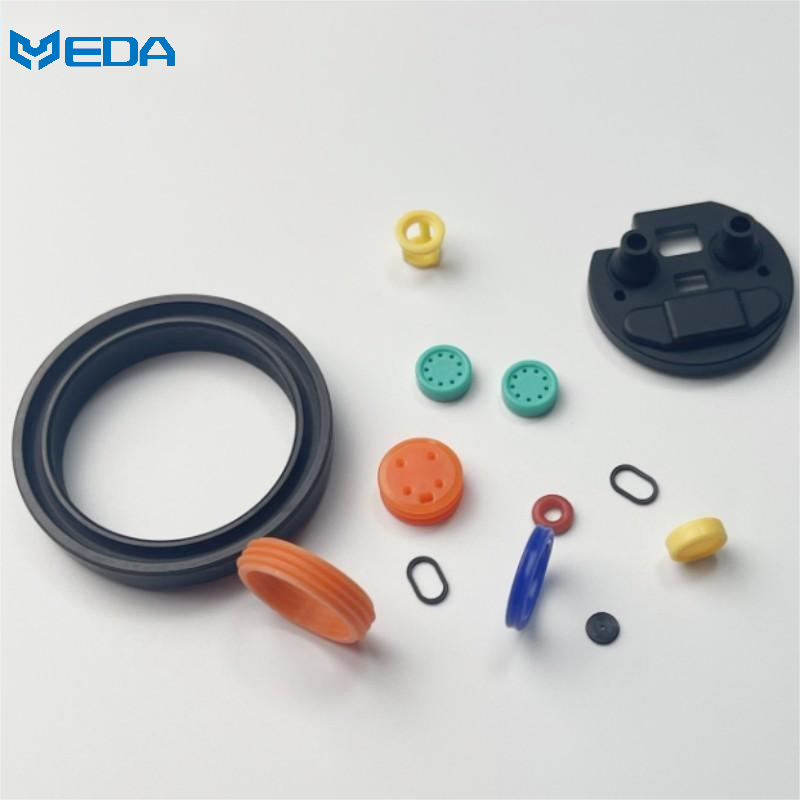

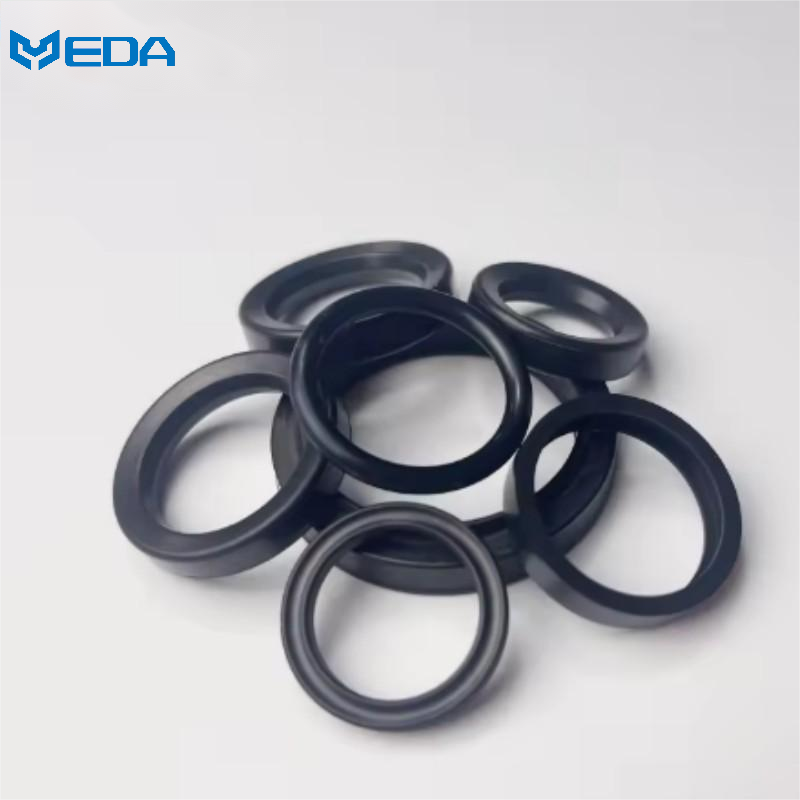

FKM O-Ring Gasket
- YiDa
- Dalian,China
- 15-20 days
- 2 billion/year
1. First and foremost, rapid prototyping and mold development: Mold development for fluoro rubber O rings only takes 10 days, the earliest prototypes can be produced in 1-2 weeks.
2. Full-range Technical Support: Assistance with 2D/3D drawing conversion. Also, fully customized services including hardness range (20°–90°) and color available.
3. Processing Services: Secondary processing, such as cutting, is offered to fulfill specific installation space requirements.
Despite the small size of FKM O-rings, if they were to fail in environments with high temperatures or chemicals, it could cause a shutdown of the whole equipment, oil leakage or even facilities explosion - in such cases, the repair and time loss would be much more costly than the part itself.
Yida Solutions:
1. Our O-ring FKM is rated for a temperature range of -40°C to 260°C and comes in four grades of fluorine content (A, B, F, and GLT) each designed for specific types of fluids. We do not deal in standard parts but strictly tailor products to your particular chemical media requirements.
2. Low compression set (≤ 20%): Helps reduce the risk of unplanned downtime caused by seal failure.
3. AS9100D (Aerospace) & IATF 16949 (Automotive) certified; 100% physical inspection of every product.
Fluorocarbon (FKM) O-ring Specifications:
| Processing Service | Cutting/Molding |
| Brand Name | EDA |
| Model Number | As per the client's drawing |
| Material | FKM (Fluoroelastomer) |
| Hardness Range | 20°–90° Shore A |
| OEM/ODM Service | Acceptable |
| Color | Common colors: Brown, green. Custom colors available upon request. |
| Operating Temperature | -40°C to 260°C |
| Shape | Custom shapes available |
| Size | Standard sizes or customized according to drawing dimensions |
| Tolerance Standard | As per customer design |
| Quality | 100% inspection |
| Design Format | 2D & 3D drawings available |
| Compression Set | ≤ 20% (200°C x 22h) |
| Tensile Strength and Elongation at Break | Tensile strength approx. 10–15 MPa; elongation at break typically 150%–250%. Customizable upon request. |
| Fluorine Content/Grade | Grade A (Standard type, fluorine content approx. 66%): Grade B (Chemical-resistant type, fluorine content approx. 68%): Grade F / GF (High-fluorine type, fluorine content approx. 70%): Grade GLT / GBLT (Low-temperature type): |
| Supports Common International Standards | AS568, BS1806, JIS B2401, ISO 3601 |
| Performance Characteristics | Excellent high-temperature resistance; good chemical resistance and resistance to most oils and solvents (except ketones and esters); moderate cold resistance. |
| Main Application Areas | Commonly used in environments requiring high-temperature, chemical, and oil resistance; widely applied in metallurgy, chemical processing, automotive, and power industries. |
| Warranty | Under recommended storage conditions (temperature <30°C, humidity <70%, away from light), unopened products that fail due to material aging (not caused by human error) within 3 years of delivery will be replaced free of charge upon verification. Failures caused by improper installation or use beyond specified limits are not covered by the warranty. |
| Production Capacity | Monthly production capacity exceeds 300 tons |
| Lead Time | 15 days for standard sizes after order confirmation. The average lead time for prototypes or initial samples is 1–2 weeks; if mold development is required, the production mold lead time is 10 days; the average lead time for mass production following sample approval is 2–3 weeks. |
| Packaging | Packed in PE bags, then in cartons |
| Selling Units | Single unit (1 pc) |
| Single Package Size | As per the buyer's request |
| Single Gross Weight | Under recommended storage conditions (temperature <30°C, humidity <70%, away from light), unopened products that fail due to material aging (not caused by human error) within 3 years of delivery will be replaced free of charge upon verification. Failures caused by improper installation or use beyond specified limits are not covered by the warranty. |
| Shipping Method | Monthly production capacity exceeds 300 tons |
| Port of Loading | 15 days for standard sizes after order confirmation. The average lead time for prototypes or initial samples is 1–2 weeks; if mold development is required, the production mold lead time is 10 days; the average lead time for mass production following sample approval is 2–3 weeks. |
| Certificates | IATF 16949 (Automotive Quality Management System) |
| AS9100D (Aerospace Quality Management System) | |
| ISO 14001 | |
| ISO 9001 | |
| RoHS 2.0 |
O ring FKM Material Technical Advantages:
We use reverse engineering as a key method in our R&D and manufacturing sealing products. Based on our 1,000+ tested formulas, we are able to replicate the process very accurately to produce the product exactly as per customer specification. We introduce each raw material into the production line through the fully automated barcode system for error prevention and with the dual control operation for the imported materials, we are able to deliver the physical properties with high stability from batch to batch.
We have an in-house mold machining center plus a team with 20 years of experience using Makino machining centers and EDM equipment. These benefits not only help us to keep the mold precision within 0.005 mm but also we can physically assure structural stability with them.

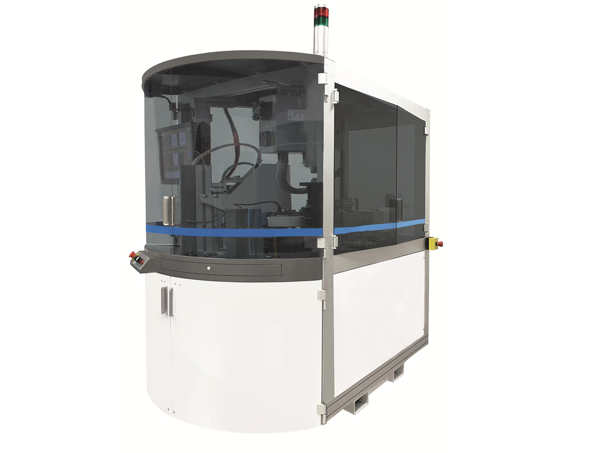

Besides, we have added an AI-driven visual inspection system that creates a triple-layer closed-loop quality control process: thorough material performance testing (CPK/SC/MSA), 2D dimensional examination, and total manual inspection. Through micron-level inspection capabilities, we maintain strict delivery standards for all products from microscopic defects to macroscopic morphology.
Industry Applications:
FKM O-rings find their major application in high-end sectors like automotive, medical, new energy, aerospace, machinery and equipment, industrial automation, and semiconductors. Sophisticated smart manufacturing systems and a well-developed industry supply chain guarantee excellent product quality and performance.
Automation
Automotive
Aerospace
Semiconductor
New Energy
Medical
About Yida:

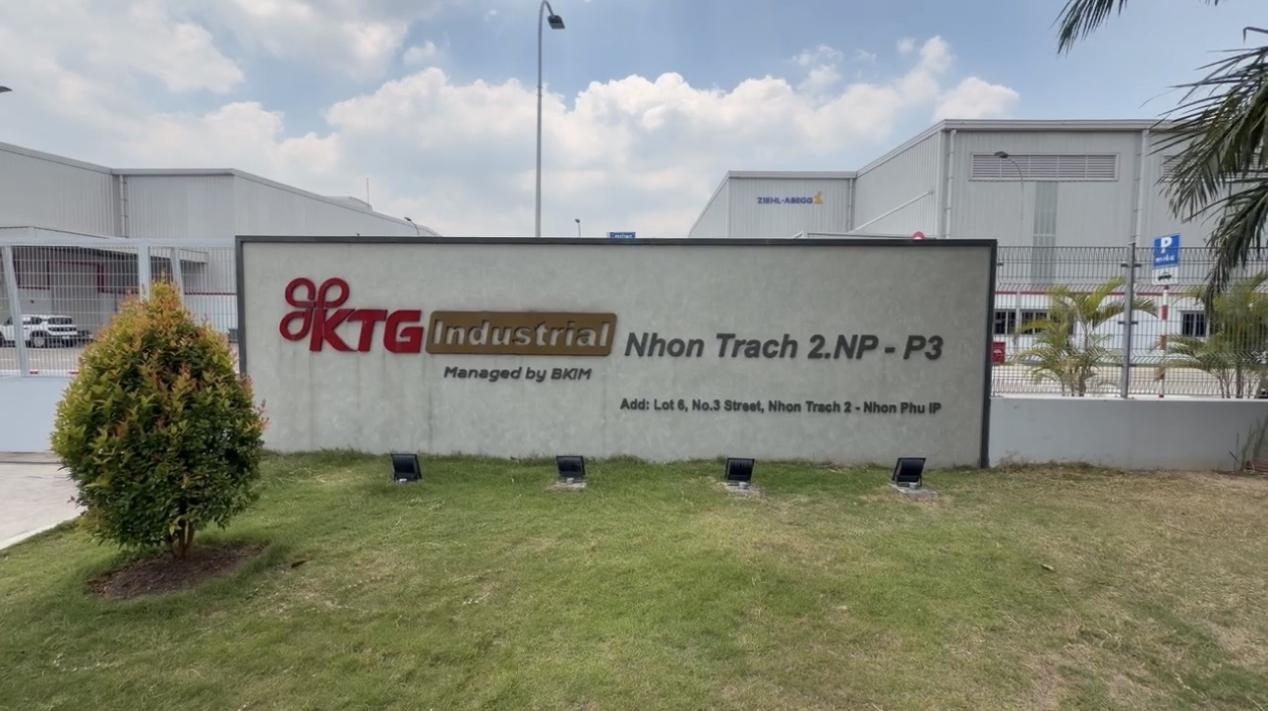

Established in 1993, Yida has been manufacturing industrial rubber for more than two decades. Located in Dalian, with a total workforce of 450 people, the company operates from a facility of 37,000 square meters. Besides China, Yida has production facilities in Vietnam and Japan. To maintain uniformity in production, these plants use a wide range of more than 1,000 tested formulas. Our products are exported to almost every country, including USA, Germany, Saudi Arabia, Russia, Mexico, Japan, Thailand, UAE, France, and Vietnam.
Certifications:
Yida holds certifications including IATF16949, ISO9001, ISO14001, AS9100D, RoHS 2.0, UL, and NSF/WRAS.
Certificate Numbers:
AS9100D & ISO 9001:2015
Partners:
Yida keeps on offering reliable products and services to clients in different areas all over the world such as industrial manufacturing, automation control, new energy, electrical equipment, and automotive components. To this day, it has maintained its relationships with a lot of internationally famous companies. Our clients come from quite varied industries including automotive electronics, industrial automation, intelligent manufacturing, new energy, power equipment, and fluid control. Our notable clients include Delphi Technologies, Alpine Electronics, Nidec, Siemens, Panasonic, Omron, SMC Corporation, CATL, China Electric Equipment Group, and Rongke Power.
Shipping & Delivery:
We offer three primary shipping methods—sea, land, and air—tailored to your order volume, delivery timeline, and budget.
Packaging:
Our packaging services are extensive and include custom-printed PE bags, the branding of outer cartons via labeling, and protective logistics packaging in different colors for easy identification and brand enhancement.
Delivery:
A minimum order quantity (MOQ) of 1,000 units applies. Samples are complimentary but sample shipping is at customer's expense. The lead time for regular sized products (without any special post-processing) is 15 days from order confirmation.
Prototypes or first-article samples usually take 1-2 weeks; if new mold is required, mold making takes 10 days; once sample is approved, mass production lead time is about 2-3 weeks.
After-Sales Service:
If the product remains unopened and is stored in recommended conditions (temperature <30°C, humidity <70%, away from direct light), we would give you a free replacement if material aging or failure occur— due to non-human causes— within three years from the delivery date, subject to confirmation. Failures due to improper installation or usage beyond specified limits will not be covered by the warranty.
Exhibition News:
The 27th Dalian International Industrial Expo:
We took part actively in the 27th Dalian International Industrial Expo in May, 2025 at the Dalian Free Trade Zone International Convention and Exhibition Center. The main topics of the expo were digital-intelligence driven, collaborative empowerment, and green development. This event attracted nearly 900 exhibitors from all over the world. During the exposition, we displayed our high-performance rubber sealing solutions in accordance with the unfolding digital and intelligent transformation of the industry.
The 14th Shanghai International Long-Duration Energy Storage Technology Conference & Exhibition
In response to global "Dual Carbon" goals and the energy transition, YiDa will make its debut at the Shanghai New International Expo Center in June 2025. Within the critical sector of long-duration energy storage—a cornerstone of modern power systems—we will showcase high-temperature resistant, long-life sealing products specifically engineered for next-generation energy storage equipment, thereby supporting the safe application and large-scale development of long-duration energy storage technologies.
FAQ:
How should O-rings be stored?
① Do not open the original packaging; keep the contents clean and free from damage.
② Avoid direct sunlight and store in a low-humidity environment. Sunlight and moisture accelerate rubber aging and can cause dimensional changes in rubber or plastic materials.
③ If the package has been opened, ensure the contents are free of foreign objects before resealing, and use the original packaging bag.
④ Store away from electrical equipment that generates ozone.
⑤ Do not hang O-rings on nails or wires; doing so can deform the O-ring and damage its edges.
Note: A change in O-ring color or the appearance of white powder (blooming) does not affect the O-ring's performance.
