EPDM vs FKM Diaphragms: Which Material Performs Better in Chemical Processing Applications?
For metering pumps, pneumatic diaphragm pumps, valve actuators, and fluid control systems, the diaphragm serves not only to isolate the medium and transmit pressure but also directly influences the equipment's sealing performance, operational stability, and service life. Many purchasers have encountered issues where diaphragms swell or deform after just a few months of use. Analysis reveals that the problem lies not with the equipment itself, but with incorrect material selection.
Among the various rubber diaphragm materials available, EPDM and FKM are the two most common choices in the chemical industry. How do EPDM and FKM diaphragms compare across dimensions such as chemical compatibility, temperature resistance, media resistance, application scenarios, and procurement costs?
EPDM Diaphragms:
One of the most important features of EPDM diaphragms is the high level of resistance they offer not only to weathering, ozone, steam, acids, and alkalis but to a range of other factors as well. Due to these properties, EPDM diaphragms are the preferred choice for use in a variety of applications including water treatment equipment, chemical dosing systems, and food and pharmaceutical machinery.

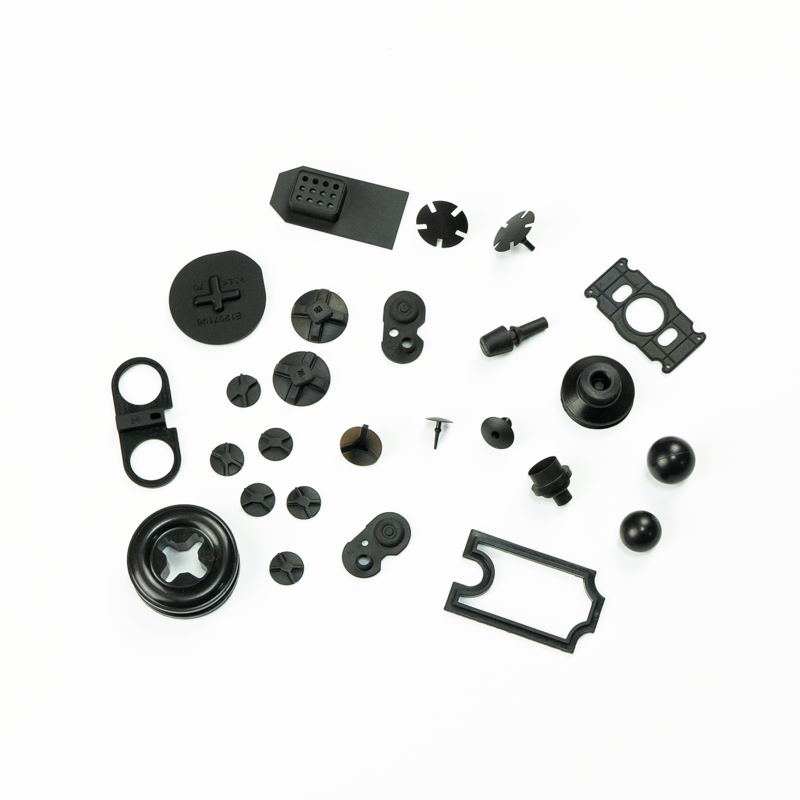

FKM Diaphragms:
The advantages of FKM lie in its resistance to chemical corrosion, oils, and solvents, as well as its broader temperature tolerance. It is typically used in petrochemical applications, organic solvent transfer, fuel systems, and semiconductor chemical handling. FKM offers a longer service life under demanding operating conditions.
Actual Performance in Various Chemical Media:
1. Sulfuric acid environments.
Both EPDM and FKM diaphragms are suitable for most sulfuric acid environments. However, FKM offers a distinct advantage in high-temperature systems.
Ambient temperature sulfuric acid: EPDM
High-temperature sulfuric acid: FKM
2. Hydrochloric acid environments.
Hydrochloric acid, being very corrosive, EPDM and FKM both generally show good resistance when used in typical chemical applications. Yet, if the temperature of the system increases substantially, FKM provides better stability.
3. Sodium hydroxide environments
EPDM has a good resistance to strong alkalis. On the other hand, FKM can be negatively affected if it is exposed for a long time to alkali solutions of high concentration. Therefore, when it comes to the use of caustic soda, EPDM is the better option. Besides, it is also suitable for alkaline washing installations and chemical cleaning systems.
4. Organic solvent environments.
Certain media (such as toluene, xylene, benzene, and acetone) can cause EPDM to swell and fail, whereas FKM maintains excellent dimensional stability. FKM is the preferred material for chemical production lines involving organic solvents.
5. Sodium hydroxide environments
EPDM has a good resistance to strong alkalis. On the other hand, FKM can be negatively affected if it is exposed for a long time to alkali solutions of high concentration. Therefore, when it comes to the use of caustic soda, EPDM is the better option. Besides, it is also suitable for alkaline washing installations and chemical cleaning systems.
How Do You Select a Diaphragm Material Based on Operating Conditions?
Before you buy, it would be a good idea to check the following five things:
1. Decide on the type of chemical medium: The choice depends on the kind of medium you are dealing with.
2. Check the medium concentration: The higher the concentration, the more demanding the material will be.
3. Check the operating temperature: As the temperature rises, the materials will age faster.
4. Check the operating pressure and frequency: A diaphragm subjected to high-frequency reciprocating motion can be damaged due to fatigue.
5. Factor in the maintenance cycle needs: If long-term continuous operation is a requirement, a longer service life of FKM may contribute to lower overall costs.
Which Is Better Suited for Chemical Processing: Epdm or Fkm Diaphragms?
It depends on your main operating conditions like:
If you only deal with
Water treatment
Acidic/alkaline solutions
Steam environments
CIP (Clean-in-Place) systems
Then, from a cost point of view, EPDM would
If your operating conditions involve:
Organic solvents;
Petroleum products;
High-temperature chemical media;
Highly corrosive environments;
Then FKM is the more reliable choice.
For purchasers of chemical processing equipment, the priority is not selecting the most expensive material, but rather choosing the material best suited to the specific operating conditions.
For actual projects, it is recommended to provide details regarding the medium type, concentration, operating temperature, pressure range, and expected service life requirements prior to purchase, allowing for an optimal solution to be determined through professional material compatibility analysis.
