Automotive O-Ring Material Selection Guide

Sometimes, an O-ring in a coolant circuit looks almost identical to one used in an oil passage. The dimensions may be the same, too. Yet replacing one with the other can cause problems because the two seals do not face the same working conditions.

Coolant and engine oil contain different chemicals and additives.

The trouble often starts after the seal has been in service for a while. Rubber exposed to the wrong fluid may swell or soften, while prolonged heat can leave it harder and less flexible. Cold conditions create a different problem: the seal may struggle to recover and maintain contact with the mating surfaces. A part that passes an initial inspection can still develop a leak later. For automotive applications, the fluid, temperature range and actual working conditions need to be considered together.

The selected compound has to suit the actual application. This guide looks at common automotive O-ring materials, the requirements of different vehicle systems, and the information worth preparing before requesting a custom seal.

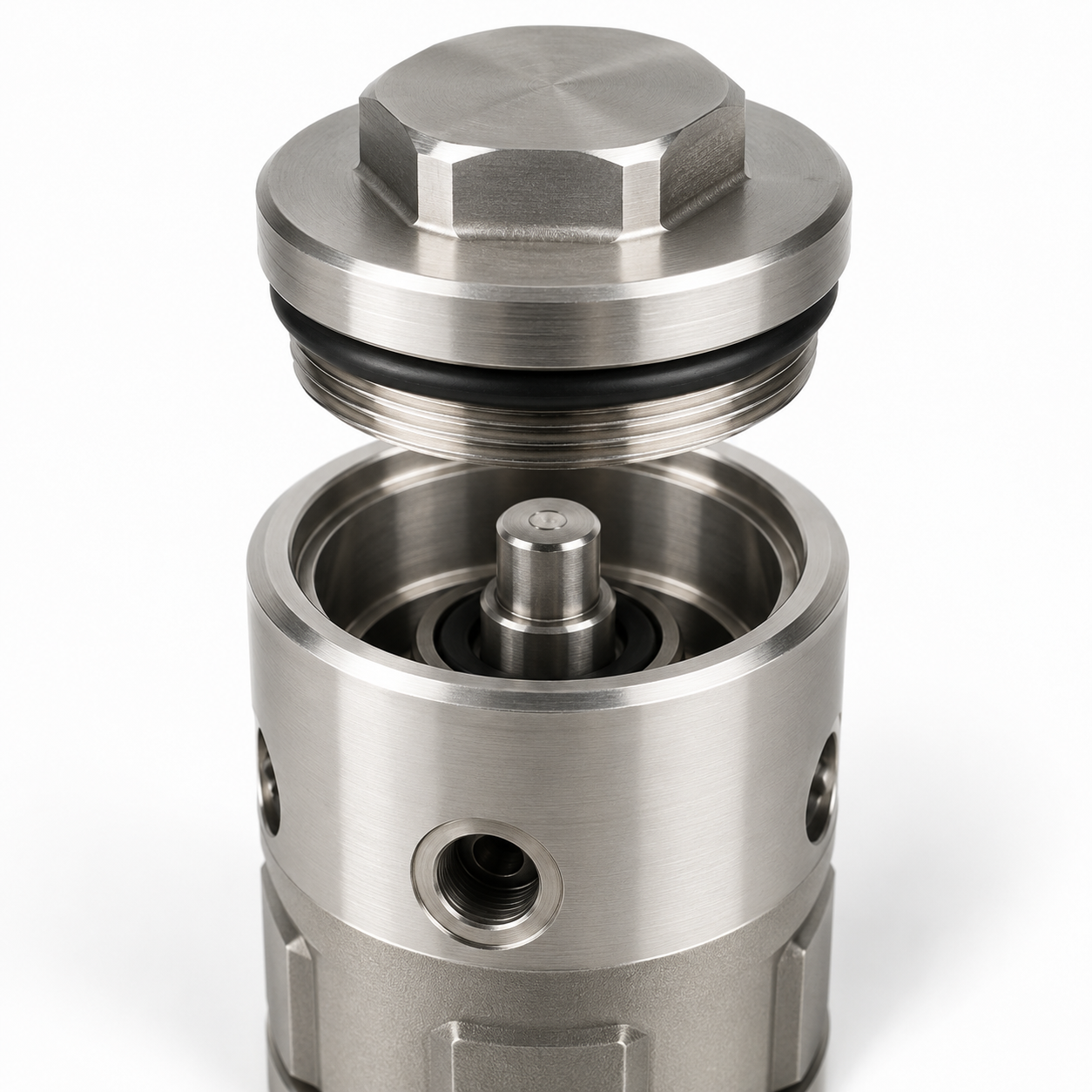

1. Why Automotive O-Rings Need Application-Specific Materials

Choosing an O-ring for a vehicle is not simply a matter of matching the rubber to the fluid. The same seal may face several conditions during its service life, and those conditions can influence the material choice.

Take a coolant hose connection as an example. The seal needs to tolerate the coolant, but it also has to cope with repeated heating and cooling. An O-ring near an engine oil passage faces a different chemical environment, even if its dimensions are similar.

Before settling on a compound, check what the seal will actually encounter. Assembly grease, cleaning chemicals and maintenance products are easy to overlook. A compound may perform well in the main operating fluid but react differently to another substance encountered during manufacturing or service.

Temperature history matters as well. A seal exposed to a short temperature peak does not experience the same conditions as one that remains hot for hours. Cold starts and repeated heating and cooling can also affect performance. The temperature at the seal itself may differ from the reading taken by a nearby sensor.

Movement is another consideration. An O-ring in a static joint has different requirements from one exposed to vibration, sliding contact or movement caused by thermal expansion. Pressure fluctuations, vacuum conditions and pressure reversal should be included when they occur in the application.

If an existing seal has failed, keep the removed part when practical and record where the damage occurred. Swelling, hardening, cuts and uneven wear can help guide the investigation. They do not establish the root cause on their own, so the groove, mating parts and operating history need to be considered as well.

For a replacement project, start with the original specification if it is available. If the material is unknown or the seal has failed repeatedly, confirm the fluid, temperature range and installation conditions before selecting an alternative.

2. NBR vs HNBR vs FKM vs EPDM and VMQ

The following comparison is a starting point for material screening. It is not a substitute for checking a specific compound against the actual application. Performance varies with formulation, fluid, exposure time, temperature and sealing design.

Published material guidance, including information from Apple Rubber, illustrates why rubber grades within the same material family should not automatically be treated as equivalent.

The material name is only the starting point.

FKM is often considered when an application involves heat, oil or fuel, but the grade still matters. Two FKM compounds may respond differently to the same fluid, especially after long exposure or at low temperatures.

EPDM is commonly used with many water-based coolants. If petroleum oil can reach the seal, however, EPDM may not be suitable for that application. The same caution applies when choosing between NBR and HNBR. Better heat or oxidation resistance does not automatically mean better performance in every fluid.

Before changing the material, check the actual fluid specification and compare test results under conditions relevant to the application.

HNBR offers improved heat and oxidation resistance over conventional NBR grades, but the result still depends on the formulation and the fluid involved. When comparing supplier data, check what was actually tested, at what temperature and for how long. A material name alone cannot answer those questions.

Two compounds with the same material-family name and nominal hardness may not perform identically. Color can help identify a part, but it does not prove its composition or purity.

3. Select Candidates Based on the Automotive System

Fuel Systems

Start with the actual fuel specification and blend, including alcohol content where relevant. Determine whether the O-ring contacts liquid fuel, fuel vapor or both, and whether permeation is an important requirement.

NBR and FKM may be candidates for some fuel applications, but their suitability depends on the fuel composition and the specific compound.

Fuel composition can change the decision. A compound approved for one fuel blend may need another review if the alcohol content or other components change. Before carrying an existing material approval over to a new specification, check that the original test conditions still represent the application.

Engine Lubrication Systems

An O-ring in an engine oil passage may spend much of its service life at elevated temperature. The oil itself also matters. Different formulations contain different base oils and additive packages, so the general description "oil-resistant rubber" is not enough to approve a compound.

ASTM D7216-25 provides a method for evaluating the compatibility of automotive engine oils with typical sealing elastomers. Its results can help narrow down material choices, but they do not establish how a finished O-ring will perform in every engine assembly.

For a replacement seal, the original oil specification and the seal's operating temperature are useful starting points. If the proposed compound differs from the approved one, compare the available test results against the original requirements before making the change.

The results offer preliminary compatibility information. They do not, by themselves, establish that an O-ring will perform reliably in a complete assembly.

NBR, HNBR and FKM may be considered for different engine-oil applications. The final choice should reflect the actual oil, operating temperature, exposure duration and sealing conditions.

If a replacement compound is being considered, compare the available test data against the requirements of the original application. A material that performs well in one oil should not automatically be approved for another formulation.

Cooling Systems

EPDM is commonly considered for O-rings exposed to water-based engine coolant. Before approving a compound, confirm the coolant chemistry, concentration, additives and any potential contaminants.

Electric vehicles introduce another variable.

An electric vehicle can have more than one cooling circuit, and the fluids used in them are not necessarily the same. A seal in a battery cooling plate, for example, may face a different fluid and temperature profile from one in a conventional engine cooling circuit. Choosing both seals from the same material family without checking the specifications can create an avoidable risk.

Frequent temperature changes and long periods of operation also deserve attention. For a replacement part, the existing material grade and coolant specification are useful starting points. If either is unknown, those details need to be established before a substitute compound can be assessed.

An automotive air-conditioning seal comes into contact with more than just refrigerant. The lubricant used in the circuit is part of the material-selection decision as well.

R134a and R1234yf systems can have different lubricant requirements, while CO₂ systems operate under different pressure conditions. A seal that works in one system should not be transferred to another simply because the dimensions match.

Parker's automotive sealing guidance discusses material considerations for refrigerant-related applications, including examples involving bonded sealing washers. These references are useful for understanding the design requirements, but a result for one sealing arrangement does not automatically qualify every O-ring compound.

HNBR is used in some refrigerant-related applications. For a particular O-ring, the refrigerant, lubricant, temperature, pressure and seal design all need to be considered before the material is approved.

Air-Conditioning Systems

For an automotive air-conditioning O-ring, identify both the refrigerant and the lubricant. Considering the refrigerant alone leaves out an important part of the chemical exposure.

Systems using R134a and R1234yf may involve different lubricant requirements, while CO₂ systems operate under different pressure conditions. Material selection should not be transferred from one system to another simply because the seals look similar.

Parker's automotive sealing guidance discusses these differences, including examples involving bonded sealing washers. Those examples illustrate why fluid combinations matter, but they should not be treated as direct approval data for every O-ring design.

HNBR is used in some refrigerant-related sealing applications. Whether a particular compound is suitable depends on the refrigerant, lubricant, temperature, pressure and seal design.

When reviewing a replacement seal, check the original part specification and the equipment manufacturer's requirements. If the system has been converted to a different refrigerant or lubricant, the previous material approval may no longer be sufficient.

Brake Systems and Other Applications

For brake systems using glycol-based brake fluid, a suitable EPDM compound may be a candidate. However, brake fluids are not all chemically equivalent. Mineral-oil-based and silicone-based fluids require their own material assessment.

Transmission fluids, greases and cleaning agents should also be identified separately when they may contact the seal.

The important point is that material compatibility depends on the actual substance and operating conditions, not simply on the name of the vehicle system.

4. Look Beyond the Material Name

Temperature, Pressure and Movement

A material datasheet provides useful information, but the conditions in the finished assembly still need to be considered.

Separate continuous operating temperature, brief temperature peaks and cold starts. Record how long each condition lasts and how often it occurs. A short exposure and continuous operation at the same temperature can produce different results.

Pressure capability belongs to the complete sealing arrangement. Clearance, support and groove geometry influence extrusion risk. Increasing rubber hardness is not a substitute for reviewing the joint itself.

Static and dynamic applications also require different attention. A moving O-ring may experience friction, wear and twisting that a static material test cannot reproduce.

Parker's O-Ring Handbook provides design guidance covering factors such as pressure, temperature, movement and material compatibility. For the geometric side of the review, see Yida's O-ring groove design guide.

Hardness, Recovery and Service Life

Hardness is one property used to specify a rubber compound, but it does not directly establish sealing force or durability.

Compression-set results describe residual deformation under specified test conditions. Compare results only when the test method, specimen and exposure conditions are compatible. Retained force during compression is a related but different question.

Service-life expectations also need a defined basis. “Long life” is difficult to verify unless the project identifies the operating duty and acceptable failure criteria, such as leakage, damage or maintenance requirements.

A practical automotive O-ring testing plan separates material screening from component validation.

ASTM D471 is useful for evaluating the effects of liquids on rubber.

Laboratory results are useful for screening materials, but they do not tell the whole story. An O-ring can show acceptable changes after fluid exposure and still fail when installed in a groove with the wrong squeeze or clearance.

For a new automotive application, testing usually needs to move beyond the rubber specimen itself. A project may begin with compound screening, followed by samples made using the intended production process. Those samples can then be evaluated under representative conditions, including assembly leak testing and inspection after conditioning.

The exact sequence depends on the customer's requirements. Before testing starts, agree on the test method, sample quantity and acceptance limits. Otherwise, even a technically sound result may not provide a clear basis for approving the part for production.

Agree on the acceptance limits before testing begins so that the results can be evaluated against clear requirements.

5. Common Material-Selection Mistakes

A few recurring problems are worth checking before approving an automotive O-ring.

Choosing a material based only on oil resistance. Engine oils and transmission fluids have different formulations. Confirm the actual fluid specification, including relevant additives, before deciding that a compound is suitable.

Using the highest temperature rating as the main criterion. A material may tolerate a short temperature peak but behave differently during prolonged exposure or repeated cold starts. Check the full operating range rather than relying on the highest number on a datasheet.

Assuming HNBR or FKM is always an upgrade. Either material may improve certain properties, but neither is the right choice for every application. The change needs to address a specific requirement while remaining compatible with the rest of the operating conditions.

Replacing a compound without requalification. Two compounds with the same material-family name and nominal hardness can differ in formulation and processing requirements. A proposed replacement should be assessed against the application's requirements before approval.

Changing the rubber to compensate for a hardware problem. Damaged groove edges, excessive clearance or incorrect squeeze can cause sealing problems even when the compound itself is suitable. Inspect the groove and mating surfaces before changing the material specification.

These checks are particularly important when replacing an existing automotive seal. The original part may have worked for years under a specific set of conditions, and a replacement should be assessed against those conditions rather than selected by size alone.

6. Prepare a Complete Custom O-Ring Inquiry

A useful RFQ allows the manufacturer to separate material questions from tooling, inspection and production requirements.

For custom automotive O-rings, include the mating groove drawing when available. A correct free-state dimension does not establish the installed compression.

If the current material is failing, photographs, exposure details and the removed seal can help the manufacturer understand the problem. If the project has no approved material yet, state that clearly rather than specifying an unverified material.

The RFQ should also explain whether samples must use production tooling and whether tooling approval, compound approval and production approval are separate milestones.

Providing this information early helps identify missing specifications before manufacturing begins.

7. Developing Custom Automotive O-Rings with Yida

At Dalian Yida Precision Rubber Products Co., Ltd., material development, mold design and manufacturing, rubber compounding, molding and product testing form part of our production capabilities.

For an automotive project, these capabilities provide a basis for discussing material candidates, tooling, samples and batch requirements together. The specific tests, reports and customer approvals still need to be confirmed for each project.

If a customer wants to replace an existing compound, the original specification and reason for the change are useful starting points. A new material may improve performance under certain conditions, but the proposed compound still needs to meet the application's requirements and be reviewed under an agreed approval process.

For a new design, share the drawing or sample, fluid specification, operating temperatures, pressure conditions and estimated quantity. Include the customer's validation requirements so the discussion can address both development and routine supply.

Whether the project starts with an existing design or a new size, the O-ring should be approved against its defined operating conditions rather than a generic material label.
